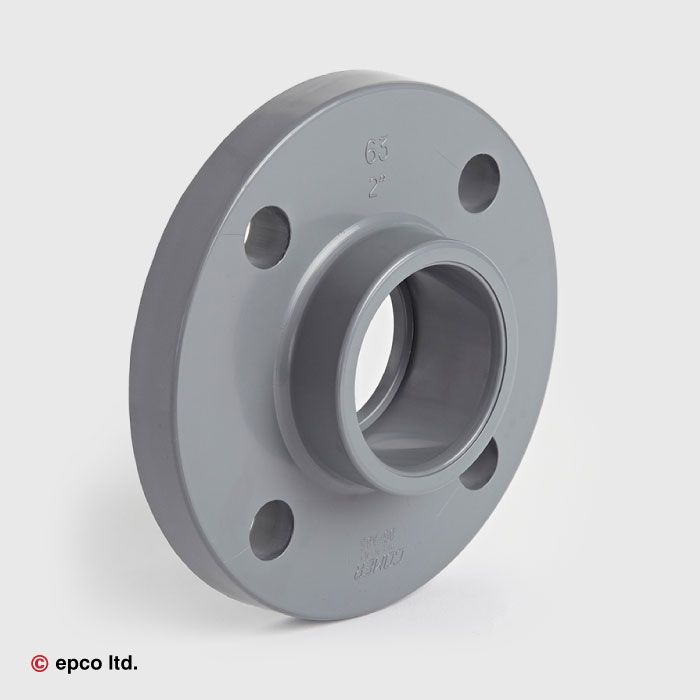

ABS Plain Full Face Flange - BS10 Tables D & E
From
£19.80
£16.50
In stock
Only %1 left
SKU
ABS-FULL-FACE-FLANGE-BS10-P
Description
ABS Full Face Flange BS10 Tables D & E is used to create a secure joint between two lengths of ABS pipe with the use of two backing rings, a stub gasket and fastener set.
| d | L | Z | I | E | S | HOLES | Bolt Dia |
|---|---|---|---|---|---|---|---|
| 1/2” | 16 | 4.5 | 67 | 95 | 11 | 4 | M12 |
| 3/4” | 19 | 4.5 | 73 | 105 | 12 | 4 | M12 |
| 1” | 22 | 4.5 | 83 | 115 | 14 | 4 | M12 |
| 1 1/4” | 26 | 4.5 | 88 | 142 | 15 | 4 | M12 |
| 1 1/2” | 31 | 4.5 | 98 | 152 | 16 | 4 | M12 |
| 2” | 38 | 4.5 | 115 | 165 | 18 | 4 | M16 |
| 2 1/2” | 44 | 6 | 127 | 185 | 19 | 4 | M16 |
| 3” | 51 | 7 | 146 | 200 | 20 | 4 | M16 |
| 4” E | 61 | 8 | 178 | 220 | 22 | 8 | M16 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
