ABS Plain x Threaded 45° Elbow
In stock
Only %1 left
SKU
011.042.02
| Enable Hide Price | No |
|---|
Description

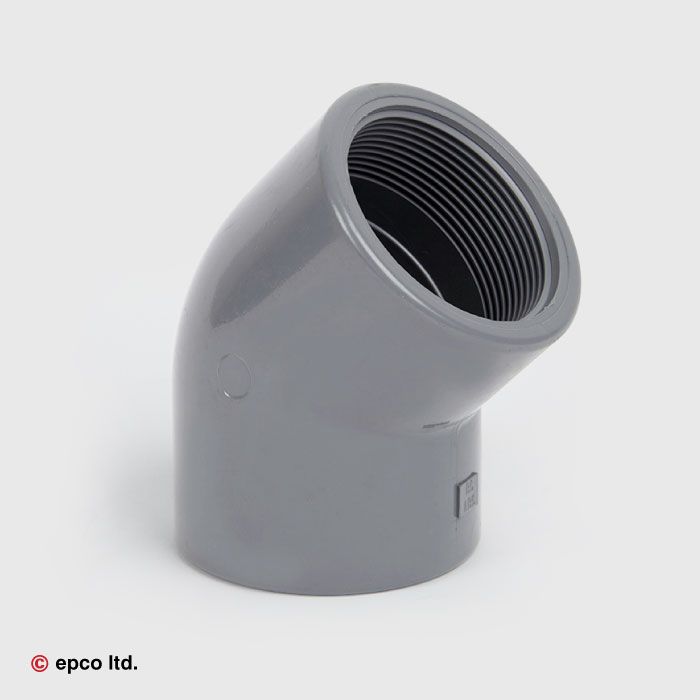

ABS 45 Degree Plain x Threaded Elbows are used to redirect the pipe to a 45-degree angle change of direction within the pipe system.
| d x G | L | L1 | Z | Z1 | E |
|---|---|---|---|---|---|
| 1/2” | 16 | 15 | 5.5 | 6.5 | 28 |
| 3/4” | 19 | 16.3 | 6 | 8.7 | 34 |
| 1” | 22 | 19.1 | 8 | 10.9 | 42 |
| 1 1/4” | 26 | 21.4 | 10 | 14.6 | 51 |
| 1 1/2” | 31 | 21.4 | 12 | 21.6 | 61 |
| 2” | 38 | 25.7 | 15 | 27.3 | 75 |
| 2 1/2” | 44 | 30.2 | 18 | 31.8 | 89 |
| 3” | 51 | 33.3 | 21 | 38.7 | 106 |
| 4” | 61 | 39.3 | 25 | 46.7 | 129 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
