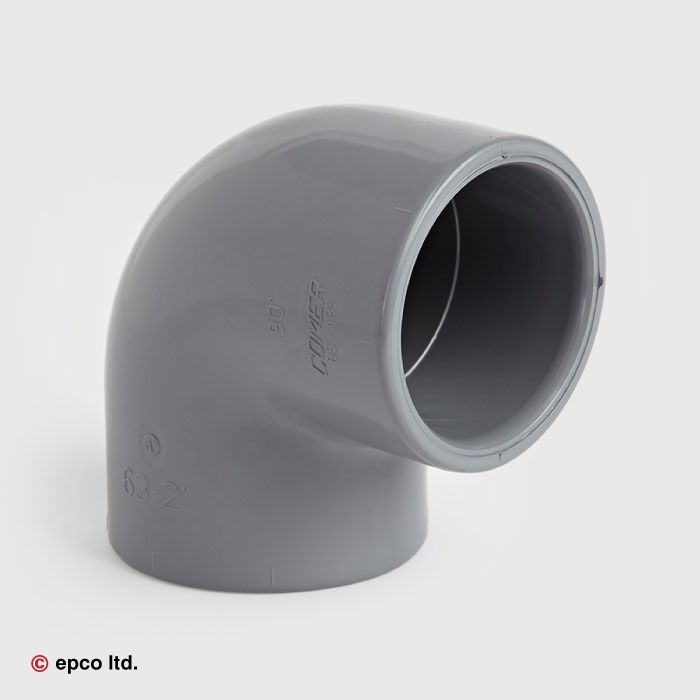

ABS Plain 90° Elbow
In stock
Only %1 left
SKU
011.031.02
| Enable Hide Price | No |
|---|
Description
ABS 90 Degree Plain Elbow is used to redirect the pipe to a 90-degree angle change of direction within the pipe system.
| d | L | Z | E |
|---|---|---|---|
| 1/2” | 16 | 11 | 26.5 |
| 3/4" | 19 | 14 | 32.5 |
| 1” | 22 | 17 | 41 |
| 1 1/4” | 26 | 23 | 50 |
| 1 1/2” | 31 | 28 | 60 |
| 2” | 38 | 34 | 75 |
| 2 1/2” | 44 | 40 | 89 |
| 3” | 51 | 48 | 106 |
| 4” | 61 | 58 | 132 |
| 5” | 76 | 72 | 168 |
| 6” | 88 | 85 | 198 |
| 8” | 119 | 115 | 258 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
