ABS Plain Stub Flange
In stock
Only %1 left
SKU
011.111.02
| Enable Hide Price | No |
|---|
Description

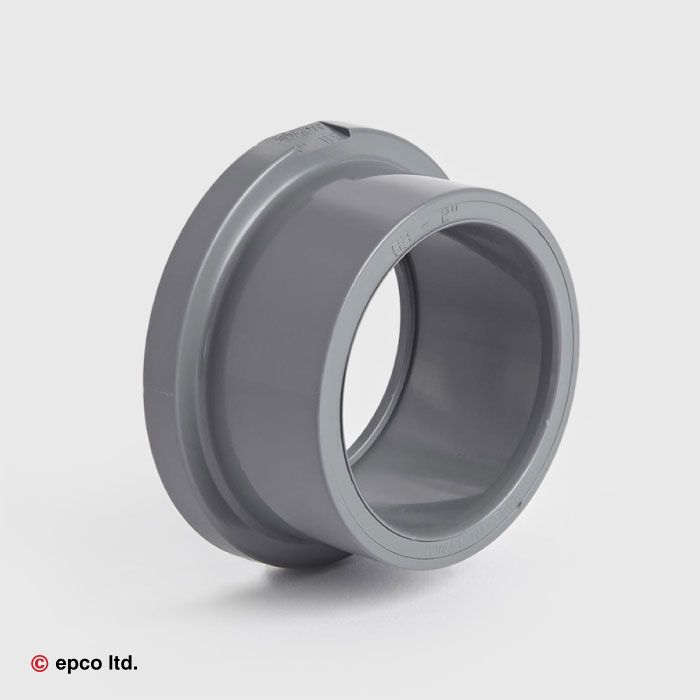

ABS Stub Flange is used to create a secure joint between two lengths of ABS pressure pipe with the use of two backing rings using a stub gasket and fastener set.
| d | L | Z | S | E | E1 |
|---|---|---|---|---|---|
| 1/2” | 16 | 3 | 6 | 27 | 34 |
| 3/4” | 19 | 3 | 7 | 33 | 41 |
| 1” | 22 | 3 | 7 | 41 | 50 |
| 1 1/4” | 26 | 3 | 8 | 50 | 61 |
| 1 1/2” | 31 | 3 | 8 | 61 | 73 |
| 2” | 38 | 3 | 9 | 76 | 90 |
| 2 1/2” | 44 | 3 | 10 | 90 | 106 |
| 3” | 51 | 5 | 11 | 108 | 125 |
| 4” | 61 | 5 | 12 | 131 | 150 |
| 5” | 76 | 5 | 14 | 165 | 188 |
| 6” | 88 | 7 | 14 | 193 | 217 |
| 8” | 119 | 7 | 19 | 248 | 274 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
