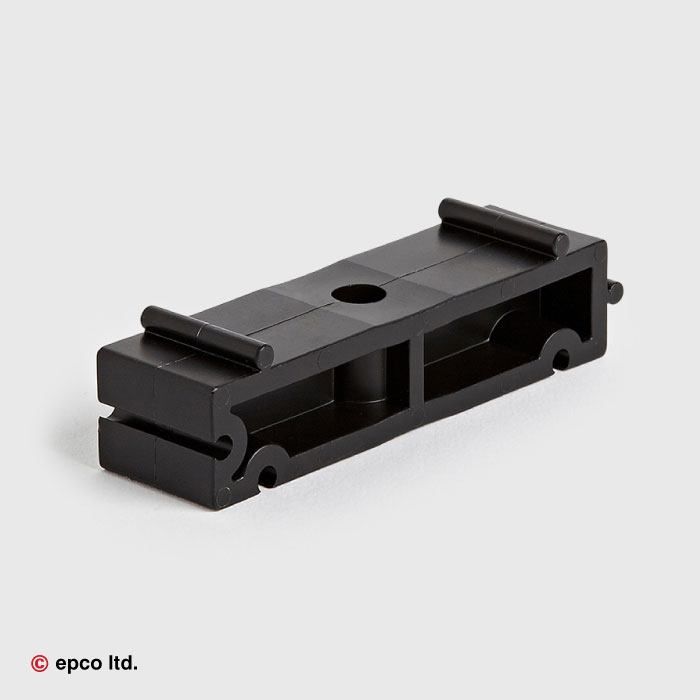

Industrial Spacing Block - Black PP
In stock
Only %1 left
SKU
961.42.01
| Enable Hide Price | No |
|---|
Description
Industrial Spacing Blocks are used to create space between a pipe and the walls when unions and ball valves are used.
| SIZE | d3 | Z1 | Z2 | H | C | E |
|---|---|---|---|---|---|---|
| 3/8” or 16mm | 5.5 | 14 | 16.5 | 20 | 10 | 16 |
| 1/2” or 20mm | 5.5 | 16.5 | 19 | 20 | 10 | 16 |
| 3/4” or 25mm | 5.5 | 19 | 21.5 | 20 | 10 | 16 |
| 1” or 32mm | 5.5 | 24 | 26.5 | 20 | 10 | 16 |
| 1 1/4” or 40mm | 6.5 | 33.5 | 33.5 | 20 | 10 | 22 |
| 1 1/2” or 50mm | 6.5 | 37 | 37 | 20 | 10 | 22 |
| 2” or 63mm | 8.5 | 44.5 | 44.5 | 20 | 10 | 25 |
| 2 1/2” or 75mm | 8.5 | 52 | 52 | 20 | 10 | 25 |
| 3” or 90mm | 8.5 | 64.5 | 64.5 | 20 | 10 | 28 |
| 4” or 110mm | 8.5 | 78 | 78 | 20 | 10 | 28 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
