Why C-PVC Pipework?
C-PVC Pipework is renowned for its properties.

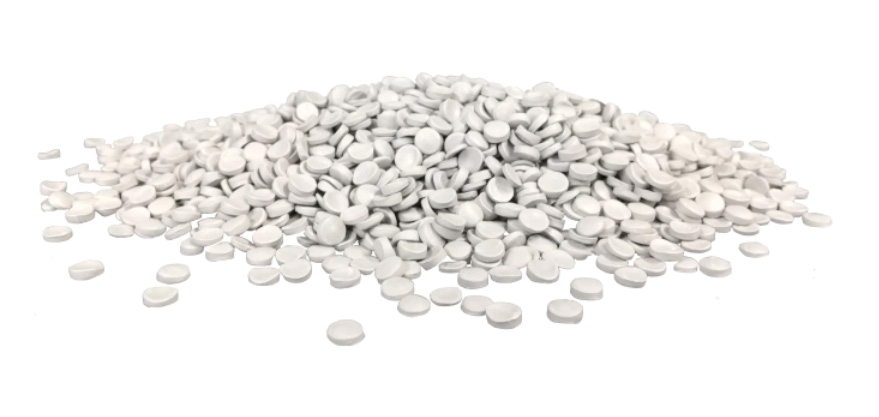

Chlorinated polyvinyl chloride.- Contains 10% more chlorine than U-PVC.
- Higher resistance to 90°C temperatures.
- Improved chemical resistance.
- More self-extinguishing in case of fire.
Pressure variation according to temperature
| Technical Specifications | |
|---|---|
| Range | 16mm - 225mm |
| Nominal Pressure | PN16 with water at 20°C |
| Temperature Range | +5°C to +90°C |
| Coupling Standards | Solvent Welding: EN ISO 15493 |
| Flanging System: ISO 7005-1, EN ISO 15493 | |
| Reference Standards | Construction Criteria: EN ISO 15493 |
| Test Methods & Requirements: EN ISO 15493 | |
| Fitting Material | C-PVC |
| Seal Material | EPDM, FPM |

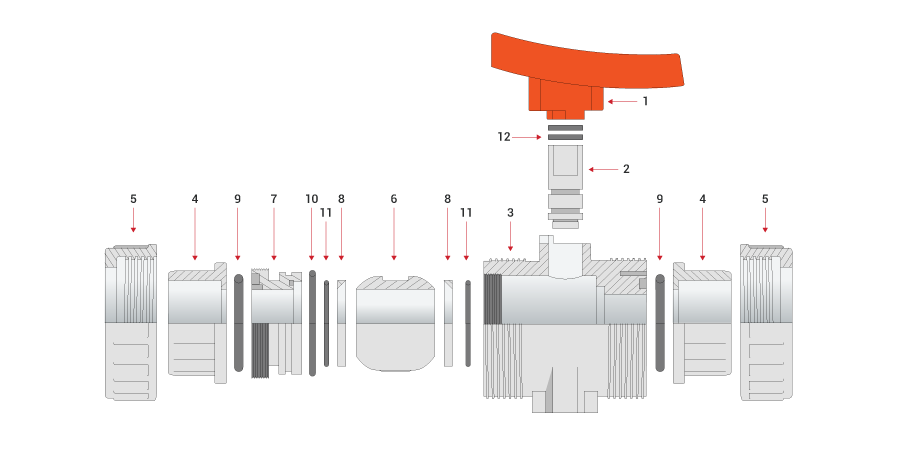

C-PVC Industrial Ball Valve
| Pos. | Component | N° | Mat. |
|---|---|---|---|
| 1 | Ergonomic Handle | 1 | PVC |
| 2 | Reinforced Stem | 1 | C-PVC |
| 3 | Body | 1 | C-PVC |
| 4 | Union End | 2 | C-PVC |
| 5 | Union Nut | 2 | C-PVC |
| 6 | Machined Ball | 1 | C-PVC |
| 7 | Threaded Sealing Bush | 1 | C-PVC |
| 8 | Ball Seat | 2 | PTFE |
| 9 | Union O-ring | 2 | FPM |
| 10 | O-ring Sealing Bush | 1 | FPM |
| 11 | O-ring Ball Seat | 2 | FPM |
| 12 | O-ring Stem | 2 | FPM |
Components making up Ball Valve

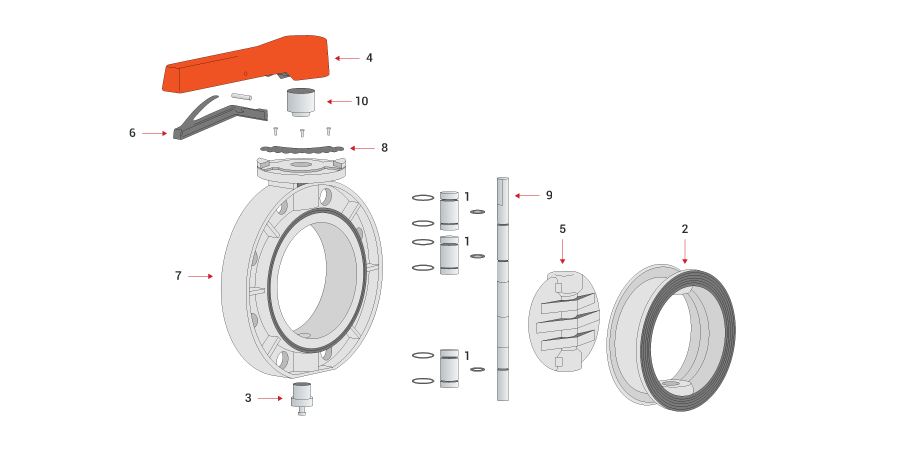

C-PVC Butterfly Valve
| Pos. | Component | Material |
|---|---|---|
| 1 | Bush | POM |
| 2 | Gasket | EPDM |
| 3 | Plug | POM |
| 4 | Handle | U-PVC |
| 5 | Disc | C-PVC |
| 6 | Locking Handle | POM |
| 7 | Body | C-PVC |
| 8 | Graduated Late | POM |
| 9 | Stem | Steel AISI 316 |
| 10 | Insert | POM |
Components making up Butterfly Valve

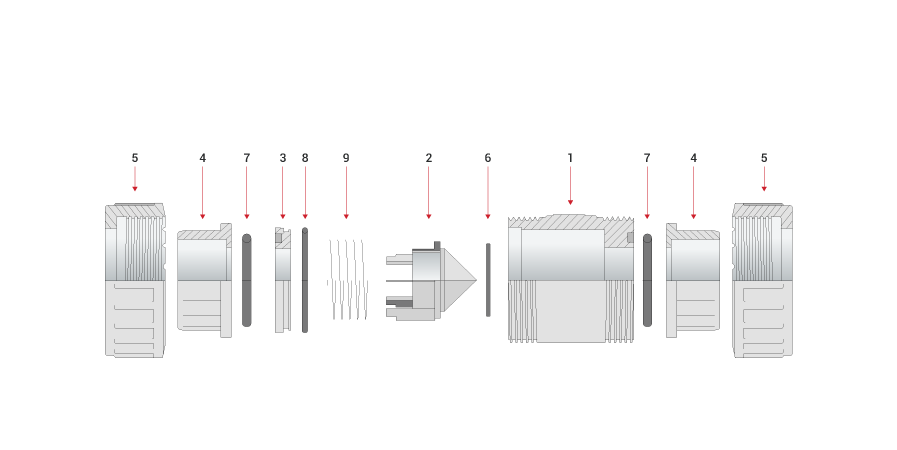

C-PVC Spring Check Valve
| Pos. | Components | N° | Mat. |
|---|---|---|---|
| 1 | Body | 1 | C-PVC |
| 2 | Shutter | 1 | C-PVC |
| 3 | Sealing Bush | 1 | C-PVC |
| 4 | Union End | 2 | C-PVC |
| 5 | Union Nut | 2 | C-PVC |
| 6 | Gasket | 1 | EPDM |
| 7 | Union O-ring | 2 | EPDM |
| 8 | O-ring Sealing Bush | 1 | EPDM |
| 9 | Spring | 1 | INOX |
Components making up Spring Check Valve
C-PVC
ACCESSORIES

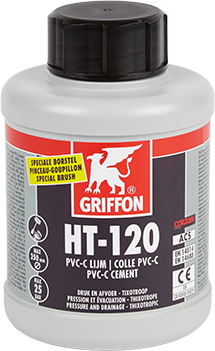

HT-120 Glue is used for joints with interference fit and loose fit (gap filling) in pressure and drainage systems. With special pipe brush for quick and easy application.
