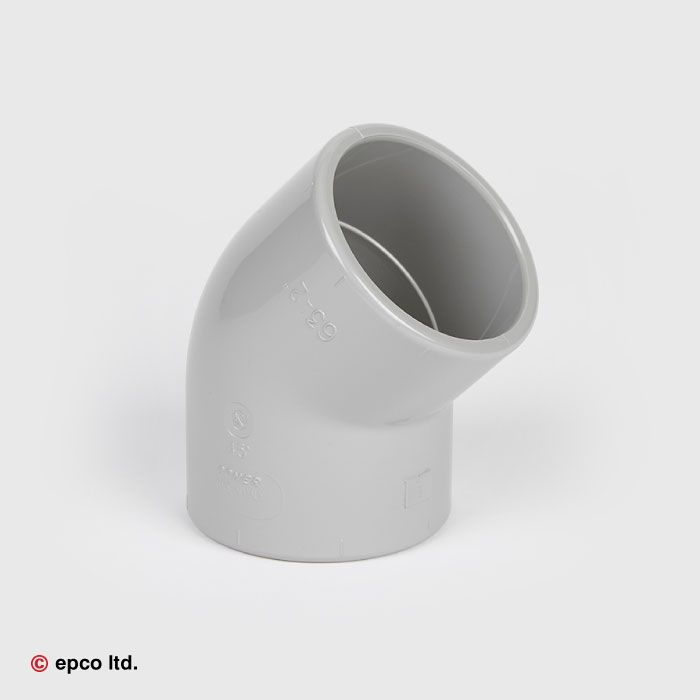

C-PVC Plain 45° Elbow
In stock
Only %1 left
SKU
062.041.020
| Enable Hide Price | No |
|---|
Description
C-PVC Plain 45 Degree Elbow is used to connect two pieces of pipe of the same diameter to create an angle of 45 degrees.
| Size (d) | L | Z | E | Bar |
|---|---|---|---|---|
| 20mm | 16 | 5.5 | 28 | 16 |
| 25mm | 19 | 6 | 34 | 16 |
| 32mm | 22 | 8 | 42 | 16 |
| 40mm | 26 | 10 | 51 | 16 |
| 50mm | 31 | 12 | 61 | 16 |
| 63mm | 38 | 15 | 75 | 16 |
| 75mm | 44 | 18 | 88 | 16 |
| 90mm | 51 | 21 | 106 | 16 |
| 110mm | 61 | 25 | 128 | 16 |
| 160mm | 86 | 36 | 184 | 16 |
| 225mm | 119 | 11 | 226 | 10 |
| 250mm | 131.5 | 58 | 287 | 10 |
| 280mm | 147 | 62 | 320 | 10 |
| 315mm | 165 | 66 | 360 | 10 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
