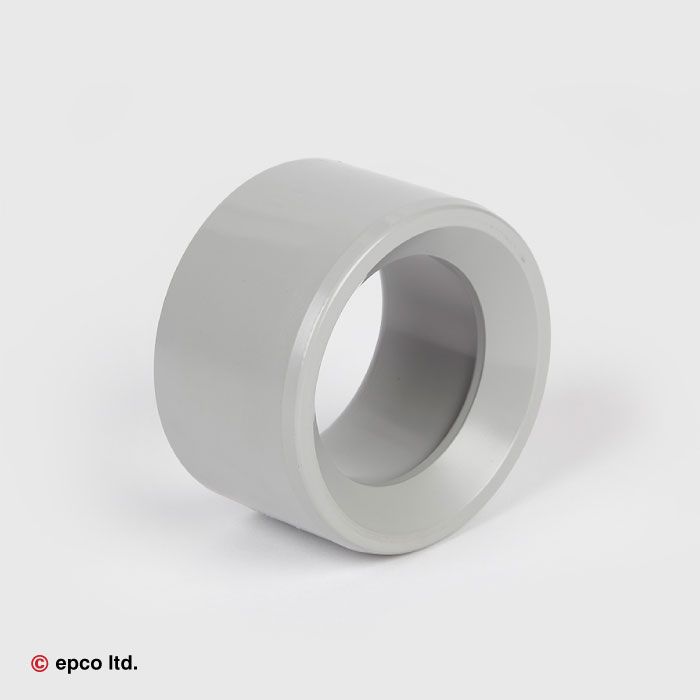

C-PVC Plain Reducing Bush
In stock
Only %1 left
SKU
062.091.020016
| Enable Hide Price | No |
|---|
Description
C-PVC Plain Reducing Bush used to create a secure joint between two lengths of pipe with the use of two backing rings, a stub gasket and fastener set.
| d x d1 | L | L1 | Z | FIG# |
|---|---|---|---|---|
| 20mm x 16mm | 16 | 14 | 2 | A |
| 25mm x 16mm | 19 | 14 | 5 | A |
| 25mm x 20mm | 19 | 16 | 3 | A |
| 32mm x 16mm | 22 | 14 | 8 | B |
| 32mm x 20mm | 22 | 16 | 6 | A |
| 32mm x 25mm | 22 | 19 | 3 | A |
| 40mm x 20mm | 26 | 16 | 10 | B |
| 40mm x 25mm | 26 | 19 | 7 | A |
| 40mm x 32mm | 26 | 22 | 4 | A |
| 50mm x 25mm | 33 | 19 | 14 | B |
| 50mm x 32mm | 33 | 22 | 9 | B |
| 50mm x 40mm | 33 | 28 | 5 | A |
| 63mm x 25mm | 38 | 19 | 19 | B |
| 63mm x 32mm | 38 | 22 | 16 | B |
| 63mm x 40mm | 38 | 26 | 12 | B |
| 63mm x 50mm | 38 | 31 | 7 | A |
| 75mm x 32mm | 44 | 22 | 22 | B |
| 75mm x 40mm | 44 | 26 | 18 | B |
| 75mm x 50mm | 44 | 31 | 14 | B |
| 75mm x 63mm | 44 | 38 | 6 | A |
| 90mm x 50mm | 51 | 31 | 20 | B |
| 90mm x 63mm | 51 | 38 | 13 | B |
| 90mm x 75mm | 51 | 44 | 7 | A |
| 110mm x 63mm | 61 | 38 | 23 | B |
| 110mm x 75mm | 61 | 44 | 17 | B |
| 110mm x 90mm | 61 | 51 | 10 | A |
| 160mm x 90mm | 88 | 56 | 30 | B |
| 160mm x 110mm | 88 | 63 | 25 | B |
| 225mm x 160mm | 119 | 86 | 33 | B |
| 315mm x 200mm | 165 | 107 | 58 | B |
| 315mm x 225mm | 165 | 132 | 33 | B |
| 315mm x 250mm | 165 | 132 | 33 | B |
| 315mm x 280mm | 165 | 149 | 16 | A |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
