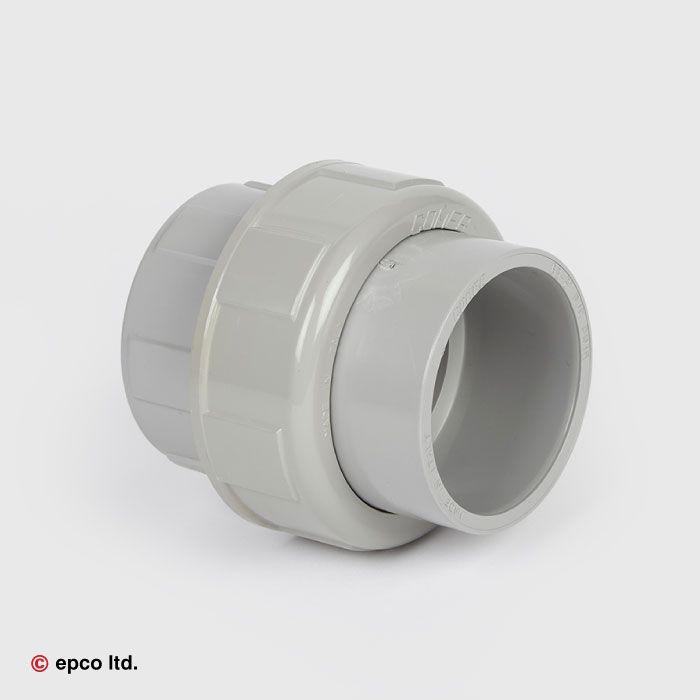

C-PVC Plain Union with Oring
In stock
Only %1 left
SKU
062.021.020
| Enable Hide Price | No |
|---|
Description
C-PVC C-PVC Plain Union with Oring is used to connect two pieces of pipe of the same diameter with a mechanism which allows the pipes to be separated if necessary.
| Size (d) | L | Z1 | Z2 | G1 | E | Bar |
|---|---|---|---|---|---|---|
| 20mm | 16 | 3 | 10 | 1" | 42 | 16 |
| 25mm | 19 | 3 | 10 | 1 1/4" | 52 | 16 |
| 32mm | 22 | 3 | 10 | 1 1/2" | 59 | 16 |
| 40mm | 26 | 3 | 12 | 2" | 72 | 16 |
| 50mm | 31 | 3 | 14 | 2 1/4" | 79 | 16 |
| 63mm | 38 | 3 | 18 | 2 3/4" | 96 | 16 |
| 75mm | 44 | 3 | 18 | 3 1/2" | 119 | 16 |
| 90mm | 51 | 5 | 18 | 4" | 134 | 16 |
| 110mm | 61 | 5 | 18 | 5" | 163 | 16 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
