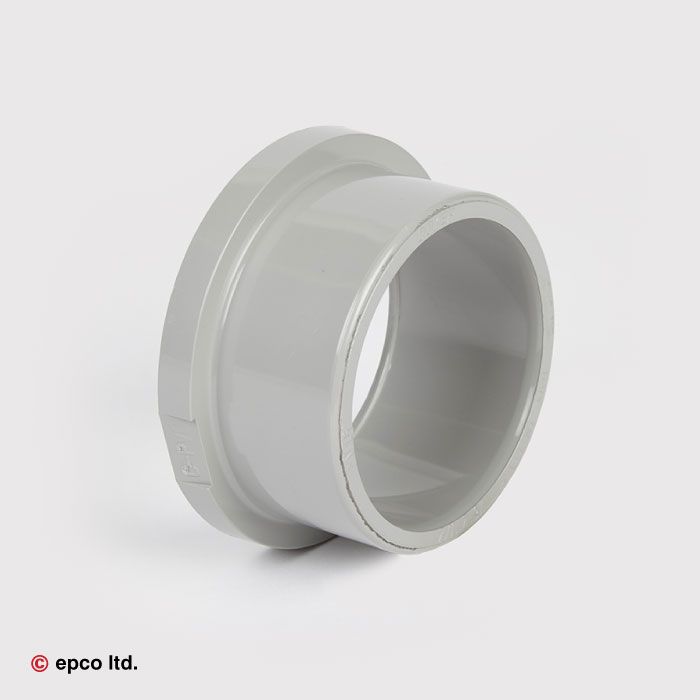

C-PVC Plain Stub Flange
In stock
Only %1 left
SKU
062.111.020
| Enable Hide Price | No |
|---|
Description
C-PVC Plain Stub Flange is used to create a secure joint between two lengths of U-PVC pressure pipe with the use of two backing rings, a stub gasket and fastener set.
| Size (d) | DN | L | Z | S | E | E1 | Bar |
|---|---|---|---|---|---|---|---|
| 20mm | 15 | 16 | 3 | 6 | 27 | 34 | 16 |
| 25mm | 20 | 19 | 3 | 7 | 33 | 41 | 16 |
| 32mm | 25 | 22 | 3 | 7 | 41 | 50 | 16 |
| 40mm | 32 | 26 | 3 | 8 | 50 | 61 | 16 |
| 63mm | 50 | 38 | 3 | 9 | 76 | 90 | 16 |
| 75mm | 65 | 44 | 3 | 10 | 90 | 106 | 16 |
| 90mm | 80 | 51 | 5 | 11 | 108 | 125 | 16 |
| 110mm | 100 | 61 | 5 | 12 | 131 | 150 | 16 |
| 160mm | 150 | 86 | 6 | 16 | 185 | 213 | 16 |
| 225mm | 200 | 119 | 8 | 19 | 247 | 274 | 16 |
| 250mm | 250 | 131 | 10 | 20 | 273 | 307 | 10 |
| 280mm | 250 | 142 | 10 | 23 | 308 | 329 | 10 |
| 315mm | 300 | 161 | 11 | 27 | 346 | 379 | 10 |
