C-PVC Spring Check Valve
In stock
Only %1 left
SKU
062.671.020Q
| Enable Hide Price | No |
|---|
Description

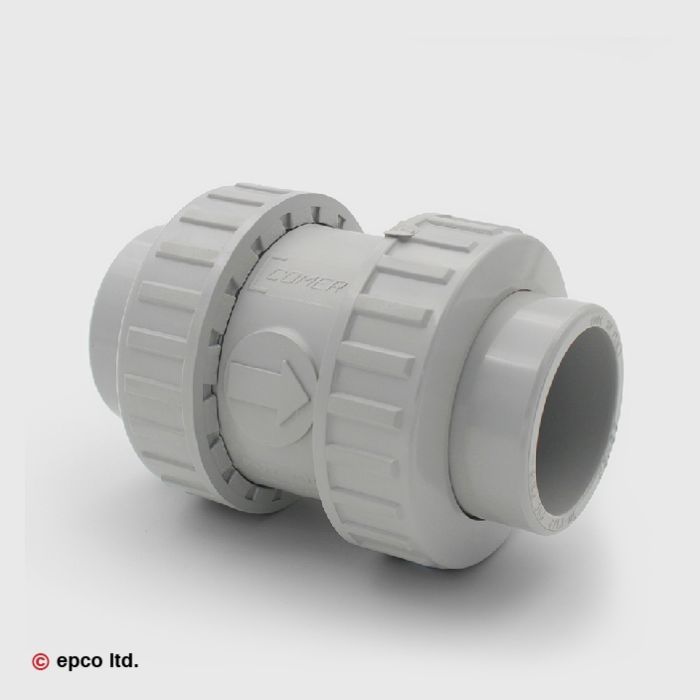

C-PVC Plain Spring Check Non Return Double Union Valve with stainless steel spring also known as non-return valves, provide a non-return function via a cone, with a stainless steel spring allowing a one-way flow only.
| SIZE | L | Z | H | A | Wt (g) |
|---|---|---|---|---|---|
| 20mm | 16 | 49 | 81 | 50 | 118 |
| 25mm | 19 | 56 | 94 | 60 | 182 |
| 32mm | 22 | 63 | 107 | 68 | 263 |
| 40mm | 26 | 72 | 124 | 80 | 400 |
| 50mm | 31 | 84 | 146 | 96 | 634 |
| 63mm | 38 | 94 | 170 | 116 | 1042 |
| 75mm | 44 | 130 | 218 | 145 | 1724 |
| 90mm | 51 | 148 | 250 | 166 | 2824 |
| 110mm | 61 | 168 | 290 | 210 | 4663 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
