C-PVC Wafer Check Valve - Without Spring
In stock
Only %1 left
SKU
063.84S.075Q
| Enable Hide Price | No |
|---|
Description

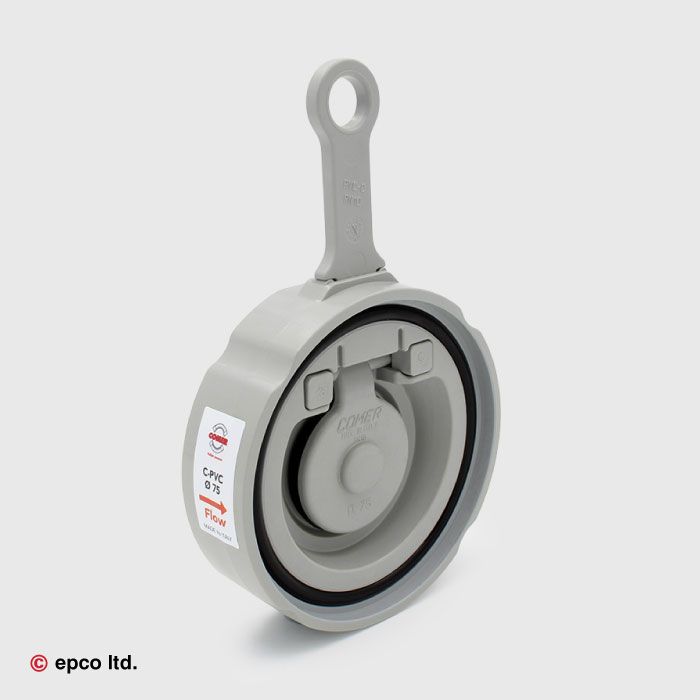

C-PVC Plain Wafer Check Valve is installed between flanges and have a non-return flow via a hinged disk.
| SIZE | H | E | D | C | Z | a° |
|---|---|---|---|---|---|---|
| 75mm | 183 | 115 | 106 | 41 | 32 | 70 |
| 90mm | 203 | 134 | 125 | 51 | 32 | 70 |
| 110mm | 229 | 160 | 150 | 68 | 34 | 65 |
| 160mm | 306 | 225 | 216 | 100 | 40 | 70 |
| 200mm | 348 | 270 | 256 | 126 | 40 | 75 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
