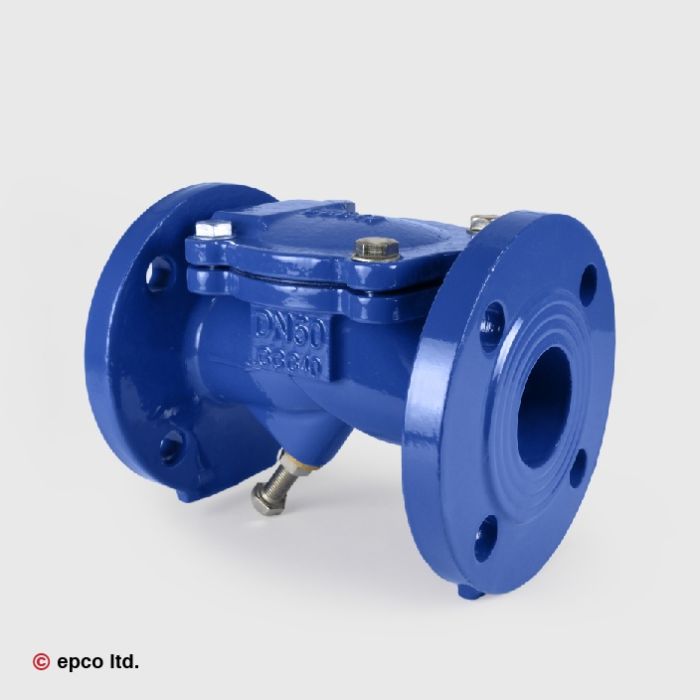

Ductile Iron Swing Check Valve - PN10/16
In stock
Only %1 left
SKU
0402634-B
| Enable Hide Price | No |
|---|
Description
Ductile iron Check Valve (GGG40) PN10/16 with a blue epdm coating - temp. range -20°C - 100°C at 16 bar pressure rating.
| SIZE | Ct | L | PCD | HOLES |
|---|---|---|---|---|
| 2" | 82.5 | 200 | 125 | 4 |
| 2 1/2" | 92.5 | 240 | 145 | 4 |
| 3" | 100 | 260 | 160 | 8 |
| 4" | 110 | 300 | 180 | 8 |
| 5" | 125 | 350 | 210 | 8 |
| 6" | 143 | 400 | 240 | 8 |
| 8" | 170 | 500 | 295 | 12 |
| 10" | 300 | 600 | 350 | 12 |
| 12" | 330 | 700 | 400 | 12 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
