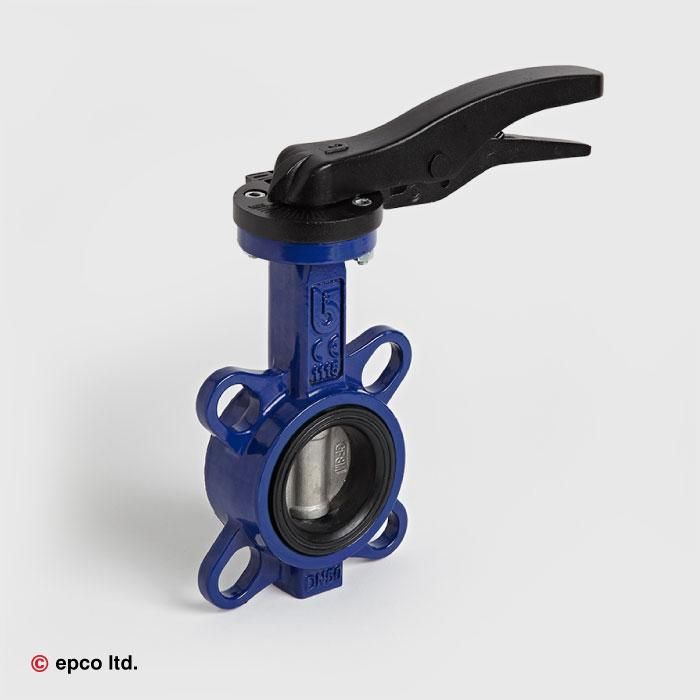

Ductile Iron Butterfly Valve - EPDM Liner
In stock
Only %1 left
SKU
0401865-B
| Enable Hide Price | No |
|---|
Description
Ductile Iron Butterfly Valve with an EDM Liner.
| SIZE | Ct | PCD | R | W1 | W2 |
|---|---|---|---|---|---|
| 2" | 190 | 110/125 | 260 | 43 | 86 |
| 2 1/2" | 202 | 130/145 | 260 | 45 | 90 |
| 3" | 209 | 150/160 | 260 | 45 | 90 |
| 4" | 228 | 170/180 | 260 | 52 | 104 |
| 5" | 241 | 200/210 | 260 | 54 | 108 |
| 6" | 253 | 225/240 | 260 | 56 | 112 |
| 8" | 298 | 280/295 | 360 | 60 | 120 |
| 10" | 330 | 335/355 | 360 | 66 | 132 |
| 12" | 375 | 395/410 | 360 | 77 | 154 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
