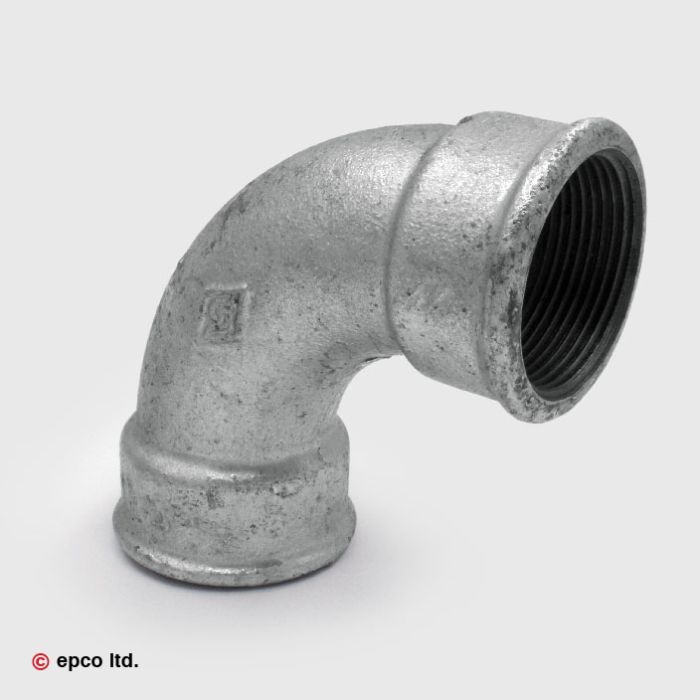

Malleable Iron Female Threaded 90° Bend - Nr. 2
In stock
Only %1 left
SKU
1000202-B
| Enable Hide Price | No |
|---|
Description
Malleable Iron Female BSP 90° Bend Nr. 2 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di | Cb1 | Cb2 | PN |
|---|---|---|---|
| 1/4" | 40 | 40 | 25 |
| 3/8" | 48 | 48 | 25 |
| 1/2" | 55 | 55 | 25 |
| 3/4" | 69 | 69 | 25 |
| 1" | 85 | 85 | 25 |
| 1 1/4" | 105 | 105 | 25 |
| 1 1/2" | 116 | 116 | 25 |
| 2" | 140 | 140 | 25 |
| 2 1/2" | 176 | 176 | 25 |
| 3" | 80 | 80 | 25 |
| 4" | 360 | 260 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
