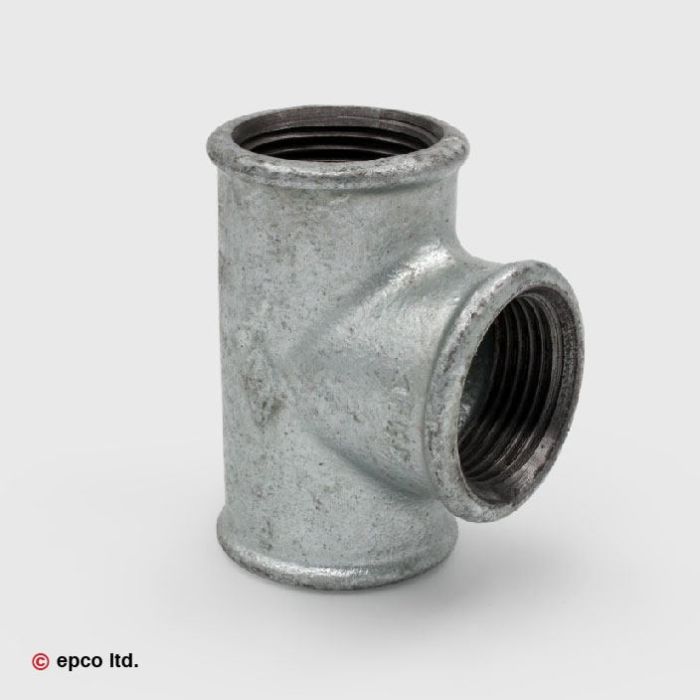

Malleable Iron Female Threaded Equal Tee - Nr. 130 - Medium
In stock
Only %1 left
SKU
1013007-B
| Canonical URL | https://epco-plastics.com/metal/malleable-iron/iron-equal-tee-female-threaded-sm |
|---|---|
| Enable Hide Price | No |
Description
Malleable Iron Female BSP Equal Tee Nr. 130 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di x Do x Di | L | Cr | F1 | F2 | F3 | PN |
|---|---|---|---|---|---|---|
| 1 1/4" | 90 | 45 | 25 | |||
| 1 1/4" X 1/2" X 1 1/4" | 76 | 38 | 25 | |||
| 1 1/4" X 3/4" X 1" | 72 | 41 | 25 | |||
| 1 1/4" X 3/4" X 1 1/4" | 82 | 36 | 19 | 14 | 19 | 25 |
| 1 1/4" X 1" X 1" | 56 | 31 | 25 | |||
| 1 1/4" X 1 1/4" X 1" | 64 | 45 | 20 | 18 | 15 | 25 |
| 1 1/4" X 1" X 1 1/4" | 84 | 42 | 25 | |||
| 1 1/2" | 100 | 50 | 21 | 21 | 21 | 25 |
| 1 1/2" X 1/2" X 1 1/2" | 84 | 42 | 25 | |||
| 1 1/2" X 3/4" X 1 1/2" | 88 | 44 | 19 | 14 | 19 | 25 |
| 1 1/2" X 1" X 1 1/2" | 92 | 46 | 19 | 16 | 19 | 25 |
| 1 1/2" X 1 1/4" X 1 1/2" | 96 | 48 | 19 | 16 | 19 | 25 |
| 1 1/2" X 2" X 1 1/2" | 110 | 55 | 25 | |||
| 2" | 116 | 58 | 25 | |||
| 2" X 1/2" X 2" | 96 | 48 | 25 | |||
| 2" X 3/4" X 2" | 80 | 50 | 25 | |||
| 2" X 1" X 2" | 88 | 52 | 24 | 20 | 24 | 25 |
| 2" X 1 1/4" X 2" | 96 | 54 | 24 | 20 | 24 | 25 |
| 2" X 1 1/2" X 2" | 104 | 55 | 25 | |||
| 2 1/2" | 138 | 69 | 25 | |||
| 2 1/2" X 1" X 2 1/2" | 94 | 60 | 24 | 20 | 24 | 25 |
| 2 1/2" X 1 1/2" X 2 1/2" | 110 | 63 | 25 | |||
| 2 1/2" X 2" X 2 1/2" | 122 | 66 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
