Malleable Iron Male Threaded Nipple - Nr. 280
In stock
Only %1 left
SKU
1028001-B
| Enable Hide Price | No |
|---|
Description

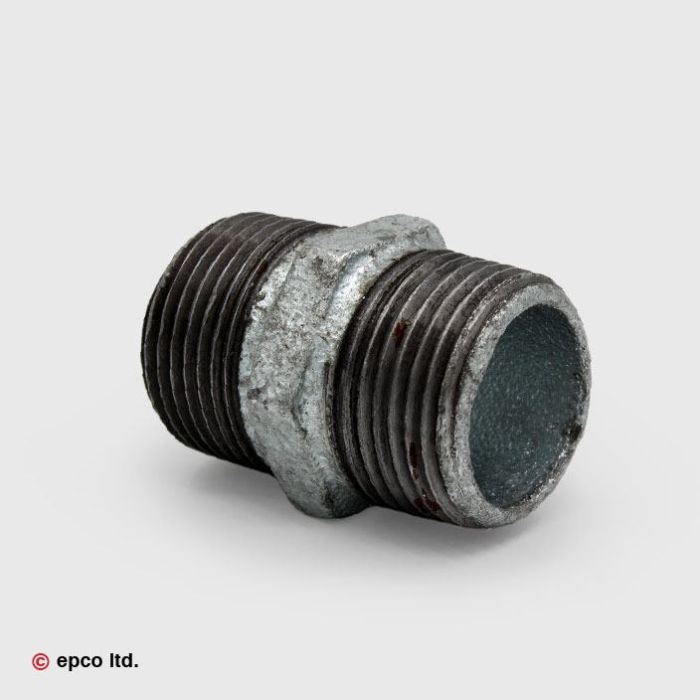

Malleable Iron Male BSP Nipple Nr. 280 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di | F1 | F2 | K1 | L | PN |
|---|---|---|---|---|---|
| 1/8" | 9 | 9 | 16 | 31 | 25 |
| 1/4" | 13 | 13 | 17 | 38 | 25 |
| 3/8" | 13 | 13 | 20 | 39 | 25 |
| 1/2" | 15 | 15 | 23 | 43 | 25 |
| 3/4" | 17 | 17 | 29 | 47 | 25 |
| 1" | 18 | 18 | 36 | 51 | 25 |
| 1 1/4" | 20 | 20 | 47 | 56 | 25 |
| 1 1/2" | 22 | 22 | 51 | 58 | 25 |
| 2" | 24 | 24 | 68 | 67 | 25 |
| 2 1/2" | 24 | 24 | 83 | 74 | 25 |
| 3" | 33 | 33 | 98 | 83 | 25 |
| 4" | 33 | 33 | 118 | 95 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
