Malleable Iron Male Threaded Reducing Nipple - Nr. 245
In stock
Only %1 left
SKU
1024502-B
| Enable Hide Price | No |
|---|
Description

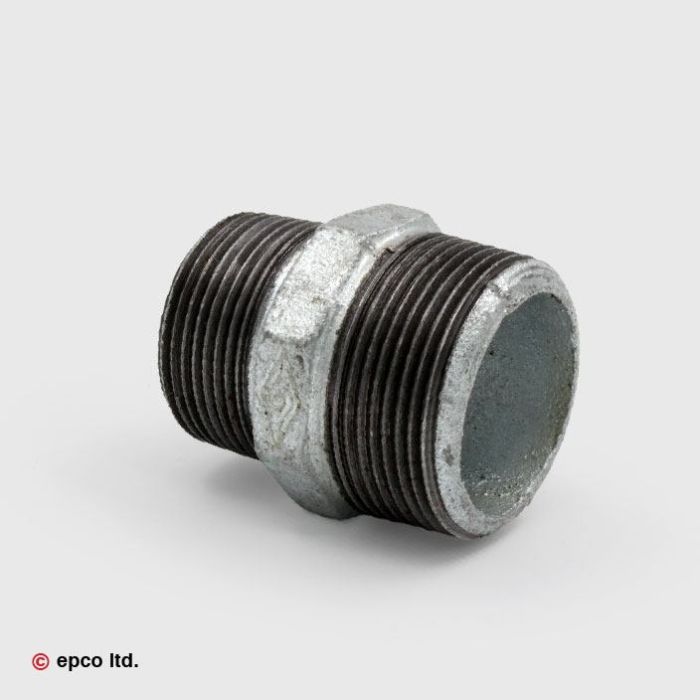

Malleable Iron Male BSP Reducing Nipple Nr. 245 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di x Do | F1 | F2 | K1 | L | PN |
|---|---|---|---|---|---|
| 3/8" X 1/8" | 20.8 | 25 | |||
| 3/8" X 1/4" | 38 | 25 | |||
| 1/2" X 1/4" | 44 | 25 | |||
| 1/2" X 3/8" | 44 | 25 | |||
| 3/4" X 1/4" | 34.6 | 25 | |||
| 3/4" X 3/8" | 47 | 25 | |||
| 3/4" X 1/2" | 47 | 25 | |||
| 1" X 1/2" | 18 | 15 | 36 | 54 | 25 |
| 1" X 3/4" | 53 | 25 | |||
| 1 1/4" X 1/2" | 23 | 15 | 46 | 58 | 25 |
| 1 1/4" X 3/4" | 22 | 16 | 46 | 58 | 25 |
| 1 1/4" X 1" | 57 | 25 | |||
| 1 1/2" X 3/4" | 24 | 17 | 51 | 59 | 25 |
| 1 1/2" X 1" | 59 | 25 | |||
| 1 1/2" X 1 1/4" | 59 | 25 | |||
| 2" X 1" | 30 | 23 | 65 | 69 | 25 |
| 2" X 1 1/4" | 30 | 25 | 65 | 69 | 25 |
| 2" X 1 1/2" | 68 | 25 | |||
| 2 1/2" X 1 1/2" | 91.2 | 25 | |||
| 2 1/2" x 2" | 33 | 30 | 79 | 77 | 25 |
| 3" X 2" | 37 | 30 | 95 | 85 | 25 |
| 3" X 2 1/2" | 32 | 28 | 97 | 85 | 25 |
| 4" X 3" | 40 | 38 | 121 | 92 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
