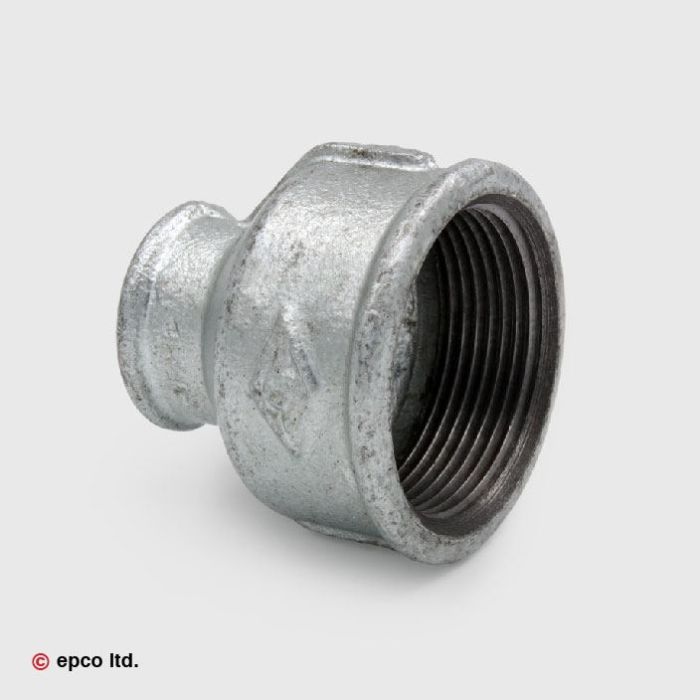

Malleable Iron Female Threaded Reducing Socket - Nr. 240 - Small
In stock
Only %1 left
SKU
1024001-B
| Enable Hide Price | No |
|---|
Description
Malleable Iron Female BSP Reducing Socket Nr. 240 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di x Do | F1 | F2 | L | PN |
|---|---|---|---|---|
| 1/4" X 1/8" | 10 | 10 | 27 | 25 |
| 3/8" X 1/8" | 10 | 10 | 30 | 25 |
| 3/8" X 1/4" | 10 | 10 | 30 | 25 |
| 1/2" X 1/4" | 10 | 10 | 35 | 25 |
| 1/2" X 3/8" | 10 | 10 | 35 | 25 |
| 3/4" X 1/4" | 39 | 25 | ||
| 3/4" X 3/8" | 16 | 10 | 40 | 25 |
| 3/4" X 1/2" | 16 | 12 | 38 | 25 |
| 1" X 3/8" | 18 | 10 | 45 | 25 |
| 1" X 1/2" | 18 | 12 | 45 | 25 |
| 1" X 3/4" | 18 | 14 | 45 | 25 |
| 1 1/4" X 1/2" | 18 | 12 | 51 | 25 |
| 1 1/4" X 3/4" | 18 | 15 | 51 | 25 |
| 1 1/4" X 1" | 18 | 15 | 51 | 25 |
| 1 1/2" X 1/2" | 19 | 12 | 54 | 25 |
| 1 1/2" X 3/4" | 19 | 14 | 54 | 25 |
| 1 1/2" X 1" | 19 | 16 | 54 | 25 |
| 1 1/2" X 1 1/4" | 19 | 16 | 54 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
