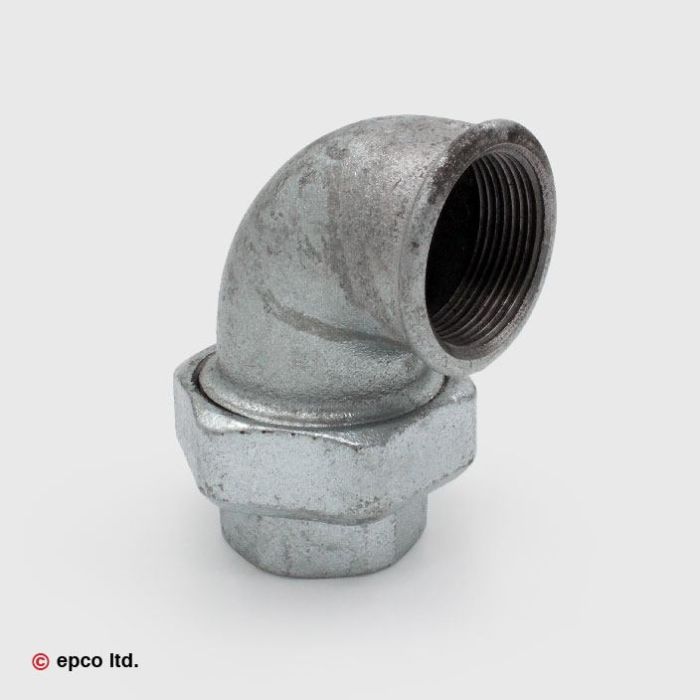

Malleable Iron Female Threaded Union 90° Elbow Conical - Nr. 96
In stock
Only %1 left
SKU
1009602-B
| Enable Hide Price | No |
|---|
Description
Malleable Iron Female BSP Union 90° Elbow Nr. 96 has a tensile strength of < 350N/mm2 and is made from cast iron with a galvanised surface treatment.
| Di | Cb1 | Cr1 | F1 | F2 | K1 | Kn | L | PN |
|---|---|---|---|---|---|---|---|---|
| 3/8" | 52 | 25 | 12 | 10 | 21 | 35 | 62 | 25 |
| 1/2" | 58 | 28 | 12 | 10 | 26 | 44 | 73 | 25 |
| 3/4" | 62 | 33 | 15 | 13 | 31 | 50 | 80 | 25 |
| 1" | 72 | 38 | 17 | 17 | 37 | 55 | 96 | 25 |
| 1 1/4" | 82 | 45 | 17 | 22 | 46 | 67 | 107 | 25 |
| 1 1/2" | 90 | 50 | 25 | |||||
| 2" | 100 | 58 | 22 | 24 | 65 | 88 | 137 | 25 |
| 2 1/2" | 119 | 78 | 27 | 24 | 84 | 110 | 158 | 25 |
| 3" | 133 | 83 | 30 | 32 | 95 | 128 | 192 | 25 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
