Stainless Steel Female Threaded Flange - NP10/16
In stock
Only %1 left
SKU
0080663-B
| Enable Hide Price | No |
|---|
Description

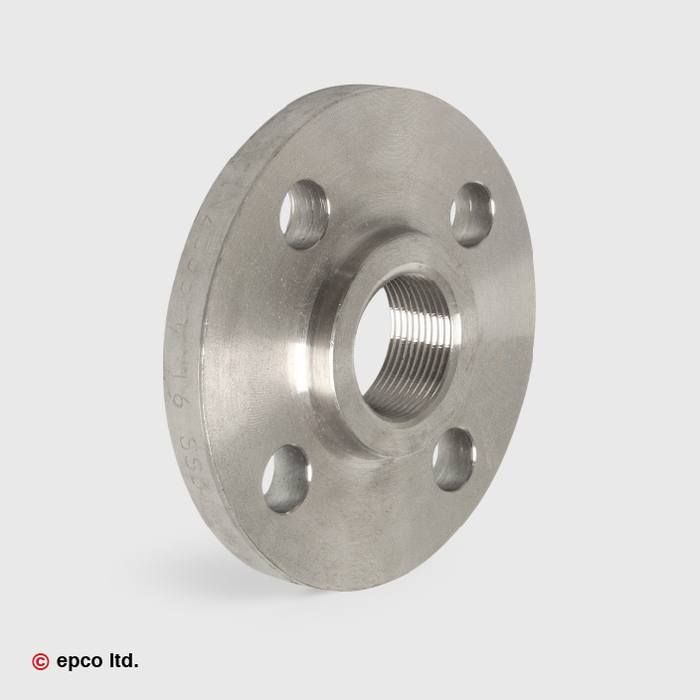

Stainless Steel Female Threaded Flange - DIN 2566 is a 316 stainless steel PN16 flange made according to DIN 2566. The fitting is available in a wide range of sizes.
| SIZE | O | PCD |
|---|---|---|
| 1/2" | 14 | 65 |
| 3/4" | 14 | 75 |
| 1" | 14 | 85 |
| 1 1/4" | 18 | 100 |
| 1 1/2" | 18 | 110 |
| 2" | 18 | 125 |
| 2 1/2" | 18 | 145 |
| 3" | 18 | 160 |
| 4" | 18 | 180 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
