U-PVC Plain Cross
In stock
Only %1 left
SKU
UPVC-CROSS-PM
Description

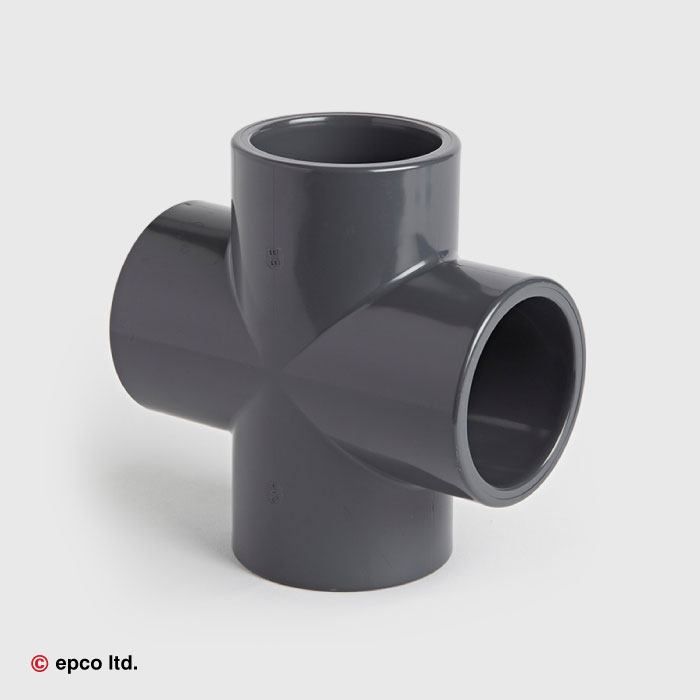

U-PVC Cross, also known as four-way fitting or cross branch line, has one inlet and three outlets (or vice versa), and a solvent-welded. A U-PVC Cross is used to join four lengths of PVC pipe of the same diameter to form a cross shape.
d | L | Z | E | PN |
---|---|---|---|---|
10mm• | 12 | 6.5 | 16 | 16 |
12mm• | 12 | 7.5 | 18 | 16 |
16mm• | 14 | 9.5 | 23.5 | 16 |
20mm | 16 | 11 | 27.5 | 16 |
25mm | 19 | 14 | 33.5 | 16 |
32mm | 22 | 17 | 42 | 16 |
40mm | 26 | 21 | 51 | 16 |
50mm | 31 | 26 | 61 | 16 |
63mm | 38 | 33 | 75 | 16 |
75mm | 44 | 40 | 89 | 10 |
90mm | 51 | 46 | 106 | 10 |
110mm | 61 | 56 | 129.5 | 10 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
