U-PVC Plain Equal Tee
In stock
Only %1 left
SKU
UPVC-TEE-PI
Description

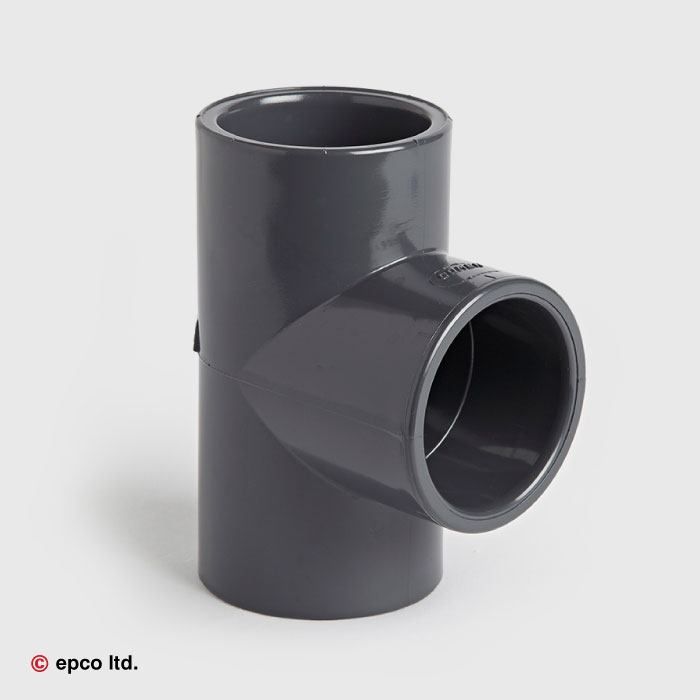

U-PVC Plain Equal Tee is used to connect three pieces of pipe of the same diameter to form a T Shape.
d | L | Z | E |
---|---|---|---|
3/8” | 14 | 9 | 23 |
1/2” | 16 | 11 | 27.5 |
3/4” | 19 | 14 | 33.5 |
1” | 22 | 17 | 42 |
1 1/4” | 26 | 21 | 51 |
1 1/2” | 31 | 26 | 61 |
2” | 38 | 33 | 75 |
2 1/2” | 44 | 39 | 89 |
3” | 51 | 47 | 106 |
4” | 61 | 62 | 132 |
5” | 76 | 72 | 162.5 |
6” | 88 | 81 | 198 |
8” | 119 | 114 | 258 |
10” | 148 | 142 | 318 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
d | L | Z | E | PN |
---|---|---|---|---|
10mm | 12 | 6 | 16 | 16 |
12mm | 12 | 7 | 18 | 16 |
16mm | 14 | 9 | 23.5 | 16 |
20mm | 16 | 11 | 27.5 | 16 |
25mm | 19 | 14 | 33.5 | 16 |
32mm | 22 | 17 | 42 | 16 |
40mm | 26 | 21 | 51 | 16 |
50mm | 31 | 16 | 61 | 16 |
63mm | 38 | 33 | 75 | 16 |
75mm | 44 | 39 | 89 | 16 |
90mm | 51 | 47 | 106 | 16 |
110mm | 61 | 57 | 129.5 | 16 |
125mm | 69 | 64 | 145 | 16 |
140mm | 76 | 72 | 162.5 | 16 |
160mm | 86 | 81 | 188 | 16 |
180mm | 97 | 93 | 209.5 | 10 |
200mm | 106 | 102 | 232 | 16 |
225mm | 119 | 114 | 258 | 16 |
250mm | 132.5 | 127 | 286 | 10 |
280mm | 147.5 | 142 | 319 | 10 |
280mm• | 146 | 144 | 320 | 8 |
315mm | 165 | 159 | 360 | 10 |
315mm• | 164 | 158 | 359 | 8 |
400mm | 206 | 214 | 445 | 6 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
