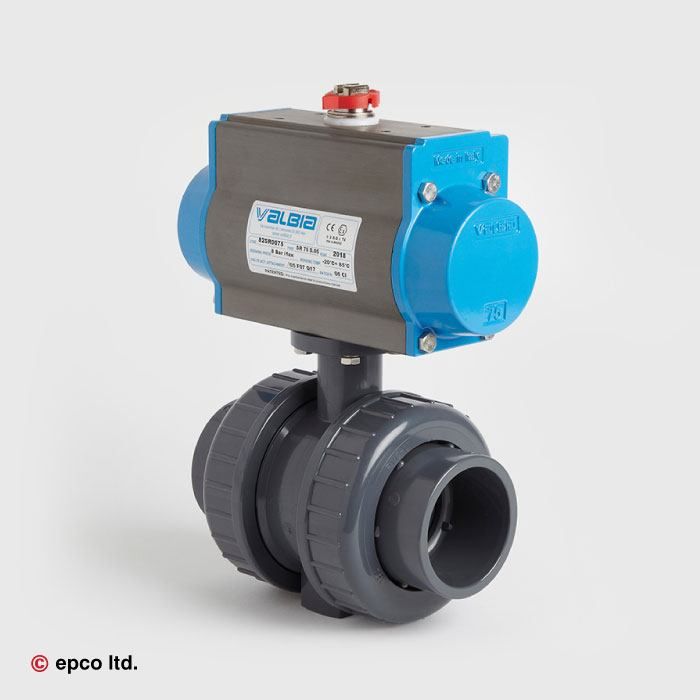

U-PVC Plain Pneumatic Actuated ISO Top Ball Valve - Spring Return - Fail Safe Close

In stock
Only %1 left
SKU
UPVC-PNEU-BALL-VALVE-ISO-SPRING-FSC-PI
Submit Enquiry
Information
Description
U-PVC Plain Pneumatically Actuated Ball Valves have either an electronic or pneumatic actuator and are used to maintain the flow automatically within a pipe system.
d L Z H A B C E F PN
3/8” 14 74 102 50 10 54 39 19 15
1/2” 16 70 102 50 10 54 39 19 15
3/4” 19 82 120 60 11 64 47 22 15
1” 22 86 130 68 13 74 55 25 15
1 1/4” 26 97 149 80 18 87 60 30 15
1 1/2” 31 103 165 96 20 100 68 35 15
2” 38 123 199 116 20 118 80 40 15
2 1/2” 44 130 218 145 25 150 90 45 10
3” 51 148 250 166 28 175 100 50 10
4” 61 168 290 210 28 200 120 60 10

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.

d1 d2 d3 d4 d5 d6 Z1 Z2 C E S
1" 73 25 42 5.5 54 63 60.5 108 11 11
1 1/2" 102 40 50 6.5 65 85.5 81.5 148 15 14
2" 124 50 50 6.5 65 101 93.5 178 15 14

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
