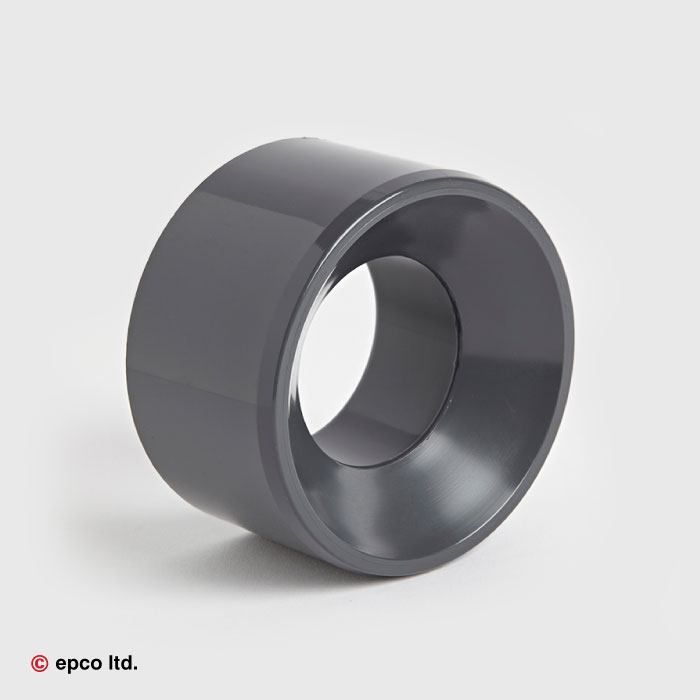

U-PVC Plain Reducing Bush - Large Bore
In stock
Only %1 left
SKU
UPVC-REDUCING-BUSH-PML
Description
U-PVC Reducing Bush is inserted into the socket end of a U-PVC fitting, reducing the bore size to allow a smaller diameter pipe to be connected.
d x d1 | L | L1 | Z | FIG | PN |
---|---|---|---|---|---|
250mm x 125mm | 131 | 69 | 62 | B | 10 |
250mm x 140mm | 132 | 77 | 55 | B | 10 |
250mm x 160mm | 134 | 87 | 47 | B | 10 |
250mm x 180mm | 132 | 96 | 36 | B | 10 |
250mm x 200mm | 134 | 107 | 27 | B | 10 |
250mm x 225mm | 132 | 120 | 12 | A | 10 |
280mm x 140mm | 146 | 76 | 70 | B | 10 |
280mm x 160mm | 146 | 86 | 60 | B | 10 |
280mm x 200mm | 146 | 106 | 40 | B | 8 |
280mm x 225mm | 147 | 120 | 27 | B | 10 |
280mm x 225mm | 146 | 119 | 27 | B | 8 |
280mm x 250mm | 147 | 132 | 15 | A | 10 |
280mm x 250mm | 146 | 131 | 15 | A | 8 |
315mm x 160mm | 163 | 86 | 77 | B | 8 |
315mm x 200mm | 165 | 107 | 58 | B | 10 |
315mm x 200mm | 163 | 106 | 57 | B | 8 |
315mm x 225mm | 165 | 132 | 33 | B | 10 |
315mm x 225mm | 163 | 119 | 44 | B | 8 |
315mm x 250mm | 165 | 132 | 33 | B | 10 |
315mm x 250mm | 163 | 131 | 32 | B | 8 |
315mm x 280mm | 165 | 149 | 16 | A | 10 |
315mm x 250mm | 163 | 146 | 17 | A | 8 |
355mm x 315mm | 184 | 163 | 21 | A | 5 |
400mm x 250mm | 206 | 131 | 75 | B | 6 |
400mm x 280mm | 206 | 146 | 60 | B | 6 |
400mm x 315mm | 206 | 163 | 42 | B | 5 |
400mm x 355mm | 206 | 184 | 21 | A | 5 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
