U-PVC Plain Female or Male Spigot x Plain Female Reducing Piece

From £3.36 £2.80

In stock

Only %1 left

SKU

UPVC-REDUCING-PIECE-P

Submit Enquiry

Description

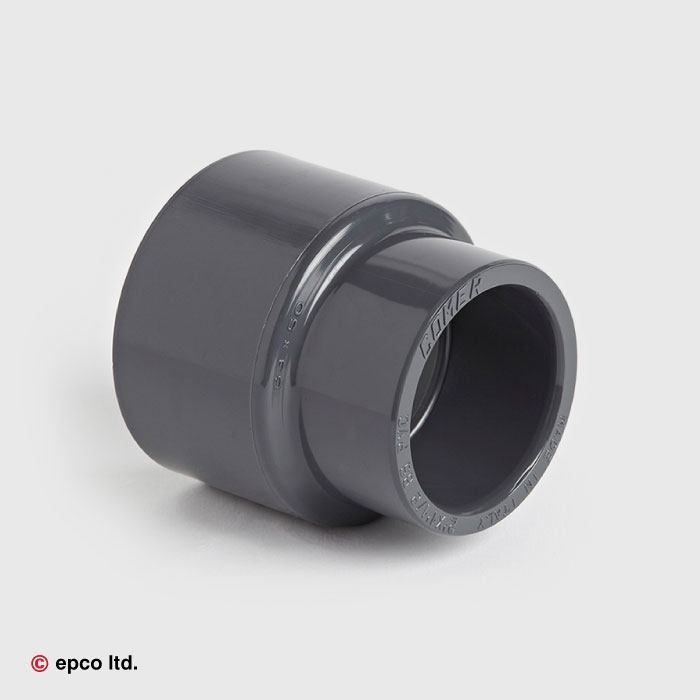

U-PVC Plain Reducing Piece is used to connect a plain fitting to a smaller plain fitting of either the same or different genders.

d x d1 x d2	L	L1	L2	Z	E	PN
20mm x 25mm x 16mm	16	14	19	6	23	16
20mm x 25mm x 20mm	16	16	19	6	28	16
25mm x 32mm x 16mm	19	14	22	6	23	16
25mm x 32mm x 20mm	19	16	22	6	28	16
25mm x 32mm x 25mm	19	19	22	6	33	16
32mm x 40mm x 20mm	22	16	24	9	28	16
32mm x 40mm x 25mm	22	19	24	8	33	16
32mm x 40mm x 32mm	22	22	26	9	41	16
40mm x 50mm x 20mm	26	16	31	9	28	16
40mm x 50mm x 25mm	28	19	31	12	33	16
40mm x 50mm x 32mm	28	22	31	9	41	16
40mm x 50mm x 40mm	26	26	31	10	50	16
50mm x 63mm x 25mm	32	19	38	19	33	16
50mm x 63mm x 32mm	31	22	38	12	41	16
50mm x 63mm x 40mm	31	26	38	12	50	16
50mm x 63mm x 50mm	31	31	38	12	60.5	16
63mm x 75mm x 40mm	38	26	44	17.2	50	16
63mm x 75mm x 50mm	38	31	44	12.3	60.5	16
63mm x 75mm x 63mm	38	38	44	3	75	16
75mm x 90mm x 40mm	44	26	51	22.5	50	16
75mm x 90mm x 50mm	44	31	51	17.5	60.5	16
75mm x 90mm x 63mm	44	38	51	11.1	75	16
75mm x 90mm x 75mm	44	44	51	3	88	16
90mm x 110mm x 40mm	51	26	61	32.8	50	16
90mm x 110mm x 50mm	51	31	61	28	60.5	16
90mm x 110mm x 63mm	51	38	61	21.5	75	16
90mm x 110mm x 75mm	51	44	61	15.7	88	16
90mm x 110mm x 90mm	51	51	61	5	106	16
110mm x 125mm x 50mm	61	31	69	34	60.5	16
110mm x 125mm x 63mm	61	38	69	27.5	75	16
110mm x 125mm x 75mm	61	44	69	22.8	88	16
110mm x 125mm x 90mm	61	51	69	17	106	16
110mm x 125mm x 110mm	61	61	69	5	129	16
125mm x 140mm x 90mm	69	51	76	23.8	106	16
125mm x 140mm x 110mm	69	61	76	17	129	16
125mm x 140mm x 125mm	69	69	76	6	145	16
140mm x 160mm x 90mm	76	51	86	23.5	106	16
140mm x 160mm x 110mm	76	61	86	18	129	16
140mm x 160mm x 125mm	76	69	86	8	145	16
140mm x 160mm x 140mm	76	76	86	8	164	16

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
