U-PVC Plain x Threaded Table Duct
In stock
Only %1 left
SKU
UPVC-TABLE-DUCT-PT
Description

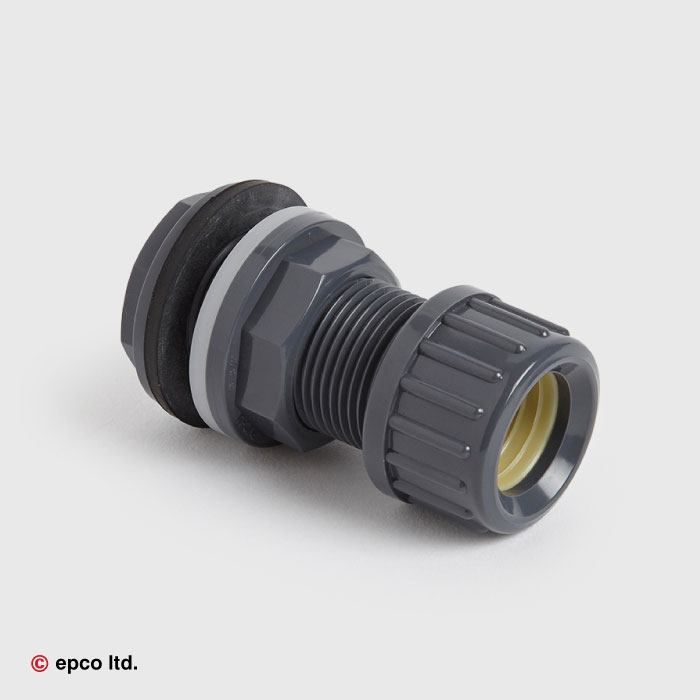

U-PVC Plain x Threaded Table Duct with Clamping Nut is a straight BSP male thread and is used to fit pipe to tanks and other watertight connections. Injection moulded with a pressure rating of 16 bar.
SIZE | d1 | d3 | Z1 | Z2 | D | S |
---|---|---|---|---|---|---|
20mm x 3/4” | 20 | 3/4” (M) | 8 | 0-25 | 56 | 32 |
25mm x 1” | 25 | 1” (M) | 10 | 0-25 | 60 | 40 |
32mm x 1 1/4” | 32 | 1 1/4” (M) | 7 | 0-25 | 66 | 55 |
40mm x 1 3/4” | 40 | 1 3/4” (M) | 7 | 0-25 | 78 | 74 |
50mm x 2” | 50 | 2” (M) | 9 | 0-30 | 84 | 78 |
63mm x 2 1/2” | 63 | 2 1/2” (M) | 9 | 0-30 | 90 | 100 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
