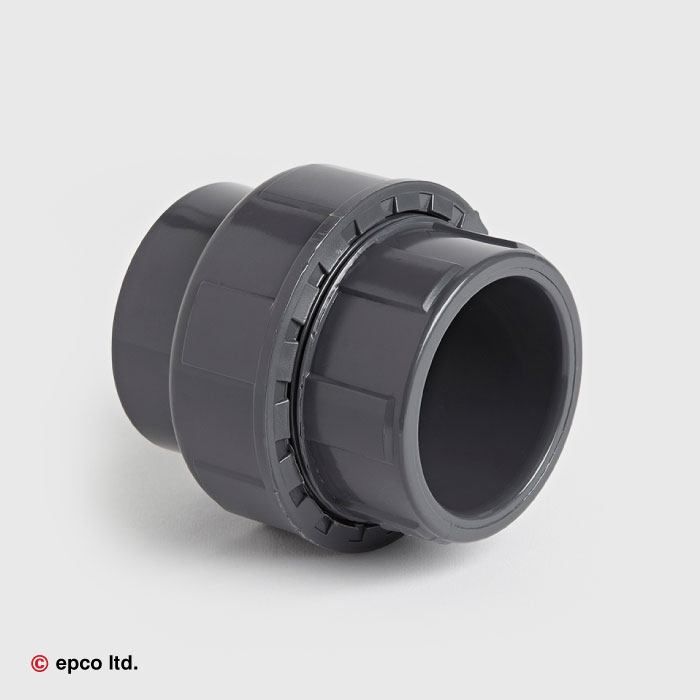

U-PVC Plain Union
In stock
Only %1 left
SKU
021.021.01
| Enable Hide Price | No |
|---|
Description
U-PVC plain union is used to connect a piece of pipe to a plain fitting, with a mechanism which allows the pipe to be separated if necessary, for future maintenance.
| d | L | Z1 | Z2 | G1 | E |
|---|---|---|---|---|---|
| 3/8” | 14 | 3 | 10 | 3/4” | 34 |
| 1/2” | 16 | 3 | 10 | 1” | 42 |
| 3/4” | 19 | 3 | 10 | 1 1/4” | 52 |
| 1” | 22 | 3 | 10 | 1 1/2” | 59 |
| 1 1/4” | 26 | 3 | 12 | 2” | 72 |
| 1 1/2” | 31 | 3 | 14 | 2 1/4” | 79 |
| 2” | 38 | 3 | 18 | 2 3/4” | 96 |
| 2 1/2”* | 44 | 3 | 18 | 3 1/2” | 119 |
| 3”* | 51 | 5 | 18 | 4” | 134 |
| 4”* | 61 | 5 | 18 | 5” | 163 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
| d | L | Z1 | Z2 | G1 | E | PN |
|---|---|---|---|---|---|---|
| 10mm | 12 | 5/8” | 16 | |||
| 12mm | 22 | 5/8” | 18 | 16 | ||
| 16mm | 14 | 3 | 10 | 3/4” | 34 | 16 |
| 20mm | 16 | 3 | 10 | 1” | 42 | 16 |
| 25mm | 19 | 3 | 10 | 1 1/4” | 52 | 16 |
| 32mm | 22 | 3 | 10 | 1 1/2” | 59 | 16 |
| 40mm | 26 | 3 | 12 | 2” | 72 | 16 |
| 50mm | 31 | 3 | 14 | 2 1/4” | 79 | 16 |
| 63mm | 38 | 3 | 18 | 2 3/4” | 96 | 16 |
| 75mm | 44 | 3 | 18 | 3 1/2” | 119 | 10 |
| 90mm | 51 | 5 | 18 | 4” | 134 | 10 |
| 110mm | 61 | 5 | 18 | 5” | 163 | 10 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
