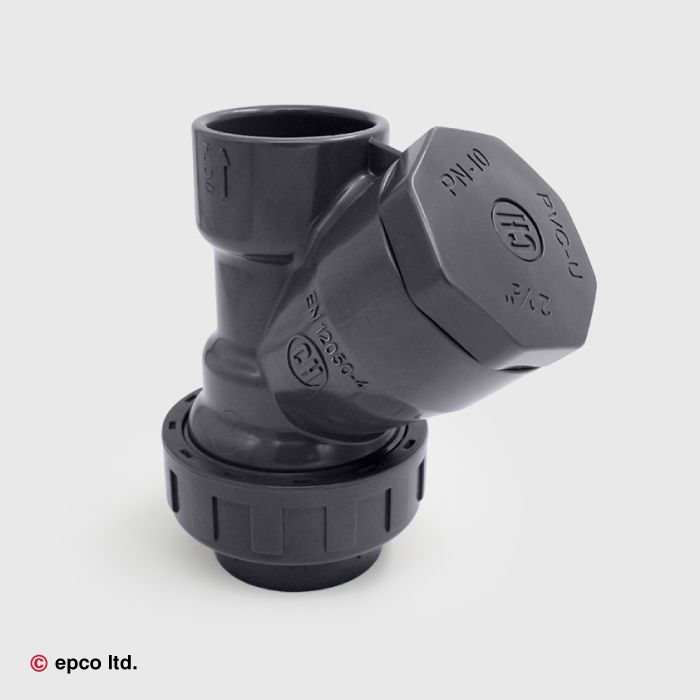

U-PVC Plain Y Ball Check Valve - Single Union
In stock
Only %1 left
SKU
021.531.01Q
| Enable Hide Price | No |
|---|
Description
U-PVC Plain Standard Angle Check Valve (Imperial Standard) is designed for vertical installation and operates effectively up to a maximum temperature of +60°C. When water flows through the non-return valve, the internal ball is pushed aside, allowing the line material to flow freely. Once the flow stops, the ball automatically drops back into position, preventing any backflow.
| SIZE | D | A | B | C |
|---|---|---|---|---|
| 3/8" | 16 | 78 | 49 | 34 |
| 1/2" | 20 | 78 | 49 | 34 |
| 3/4" | 25 | 92 | 57 | 41 |
| 1" | 32 | 104 | 67 | 59 |
| 1 1/4" | 40 | 127 | 81 | 61 |
| 1 1/2" | 50 | 158 | 99 | 71 |
| 2" | 63 | 181 | 112 | 90 |
| 2 1/2" | 75 | 238 | 154 | 114 |
| 3" | 90 | 286 | 178 | 137 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
