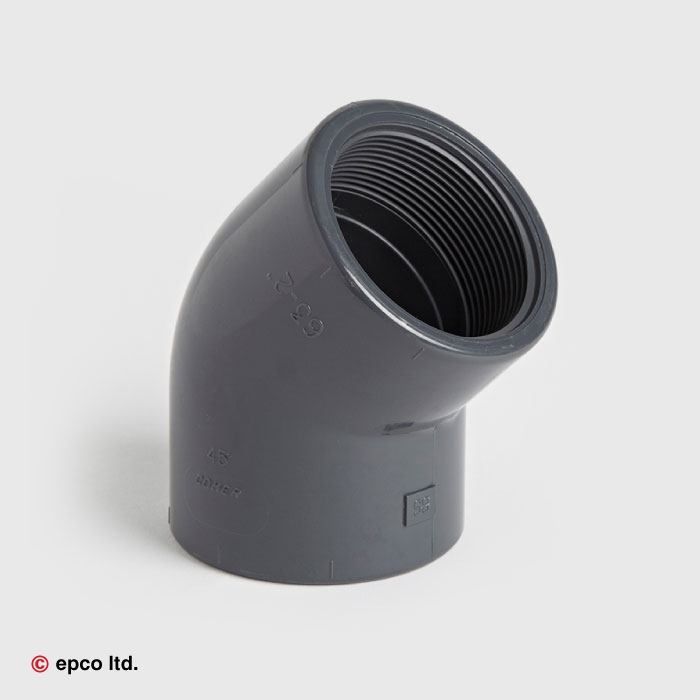

U-PVC Threaded 45° Elbow
In stock
Only %1 left
SKU
021.043.01
| Enable Hide Price | No |
|---|
Description
U-PVC Threaded 45 Degree Elbows are used to redirect pipe to a 45-degree angle change of direction within the pipe system.
| G | L | Z | E |
|---|---|---|---|
| 3/8” | 11.4 | 8.1 | 23.5 |
| 1/2” | 15 | 6.5 | 28 |
| 3/4” | 16.3 | 8.7 | 34 |
| 1” | 19.1 | 10.9 | 42 |
| 1 1/4” | 21.4 | 14.6 | 51 |
| 1 1/2” | 21.4 | 21.6 | 61 |
| 2” | 25.7 | 27.3 | 75 |
| 2 1/2” | 30.2 | 31.8 | 89 |
| 3” | 33.3 | 38.7 | 106 |
| 4” | 39.3 | 46.7 | 129 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
