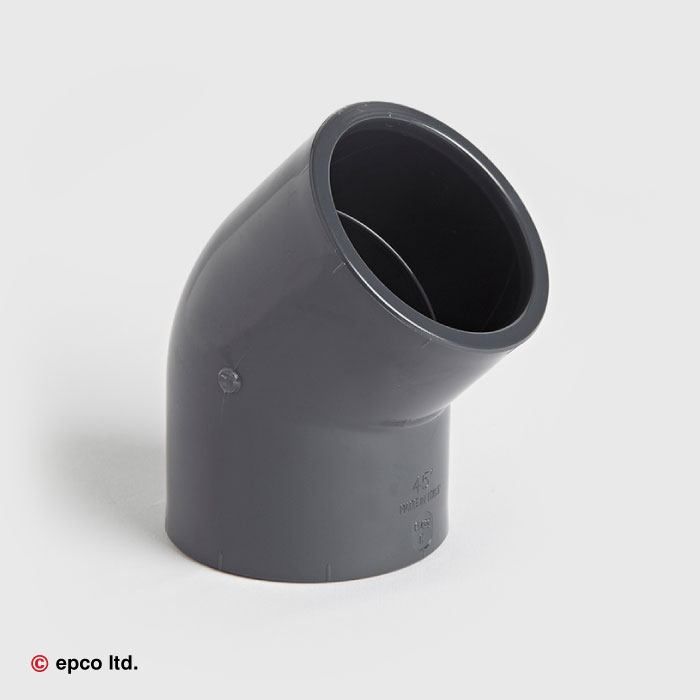

U-PVC Plain 45° Elbow
In stock
Only %1 left
SKU
021.041.01
| Enable Hide Price | No |
|---|
Description
U-PVC Plain 45 Degree Elbows are used to redirect pipe to a 45-degree angle change of direction within the pipe system.
| d | L | Z | E |
|---|---|---|---|
| 3/8” | 14 | 6 | 23 |
| 1/2” | 16 | 5.5 | 28 |
| 3/4” | 19 | 6 | 34 |
| 1” | 22 | 8 | 42 |
| 1 1/4” | 26 | 10 | 51 |
| 1 1/2” | 31 | 12 | 61 |
| 2” | 38 | 15 | 75 |
| 2 1/2” | 44 | 18 | 88 |
| 3” | 51 | 21 | 106 |
| 4” | 61 | 25 | 130 |
| 5” | 76 | 32 | 164 |
| 6” | 88 | 36 | 198 |
| 8” | 119 | 49 | 258 |
| 10” | 148 | 62 | 318 |
| 12” | 165 | 66 | 360 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
