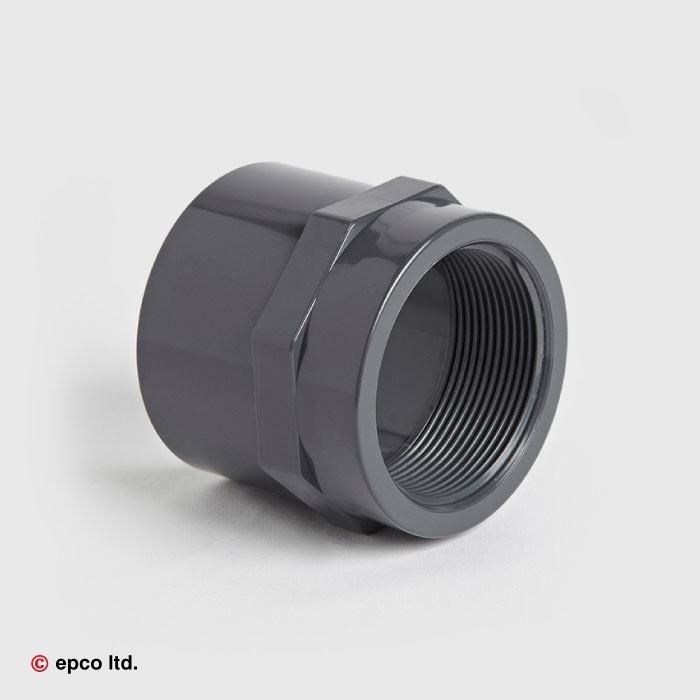

U-PVC Plain x Threaded Socket

In stock

Only %1 left

SKU

021.012.01

Information
Enable Hide Price	No

Description

U-PVC Plain x Threaded Socket is used to connect individual plastic pipes of the same diameter together.

d x G	L	L1	Z	E	E1	C
3/8”	14	11.4	3	24	24	20
1/2” x 1/4”	17	12	4	23
1/2” x 3/8”	17	12	4
1/2”	16	15	4	28	28	30
3/4” x 3/8”	20	12	7
3/4” x 1/2”	20	15	4
3/4”	19	16.3	4	34	34	34
1”	22	19.1	5	42	42	44
1 1/4”	26	21.4	5	50	50	55
1 1/2”	31	21.4	5	61	61	65
2”	38	25.7	5	75	75	78
2 1/2”	44	30.2	5	89	89	94
3”	51	33.3	8	106	106	110
4”	61	39.3	8	129	129	134

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.

d x G	L	L1	Z	E	E1	C	PN
12mm x 1/4”	12	12	2				16
16mm x 1/4”	14	12	3				16
16mm x 3/8”	14	11.4	3	23.5	23.5	24	10
20mm x 1/4”	16	12	5				16
20mm x 3/8”	16	12	5				16
20mm x 1/2”	16	15	4	28	28	30	10
25mm x 3/8”	19	12	8				16
25mm x 1/2”	19	15	5				16
25mm x 3/4”	19	16.3	4	34	34	34	10
32mm x 1/2”	22	15	10				16
32mm x 3/4”	22	16	9				16
32mm x 1”	22	19.1	5	42	42	42	10
40mm x 3/4”	26	16	6				10
40mm x 1”	26	22	4				16
40mm x 1 1/4”	26	21.4	5	50	50	55	10
50mm x 1”	31	22	2				10
50mm x 1 1/4”	31	23	4				16
50mm x 1 1/2”	31	21.4	5	61	57.5	65	10
63mm x 1 1/4”	38	23	3				10
63mm x 1 1/2”	38	25	7				16
63mm x 2”	38	25.7	5	75	71.5	75	10
75mm x 1 1/2”	44	23	5				10
75mm x 2”	44	27	4				10
75mm x 2 1/2”	44	30.2	5	89	88.5	90	10
90mm x 3”	51	33.3	8	106	106	110	10
110mm x 4”	61	39.3	8	129	129	129	10
125mm x 5”	69	43.6	41	145	144		10

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
