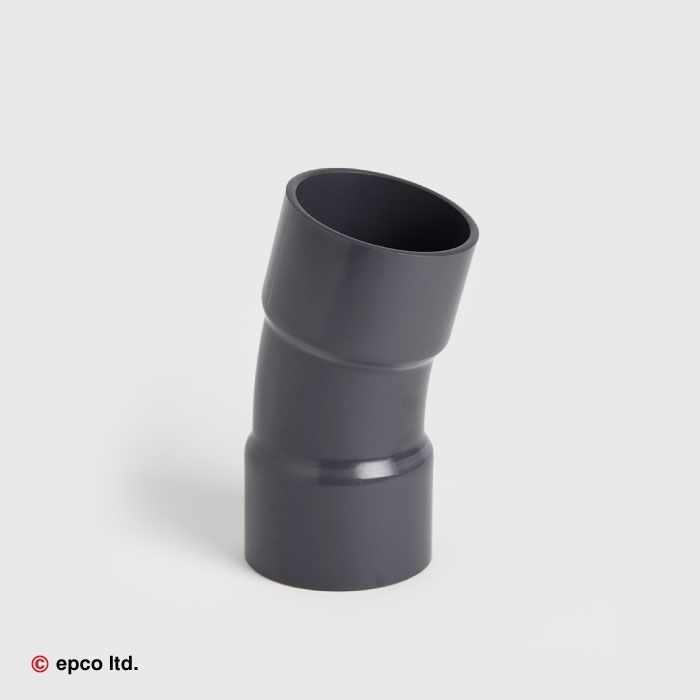

U-PVC 15° Bend - Made of Tube
In stock
Only %1 left
SKU
022.761.090M
| Enable Hide Price | No |
|---|
Description
U-PVC 15 degree Bend is from tube are used to connect two pieces of pipe of the same diameter at an angle of 15 degrees with a gradual curve for a smooth flow and a pressure rating of 12.5 bar.
| d | L | PN |
|---|---|---|
| 90mm | 51 | 12.5 |
| 110mm | 61 | 12.5 |
| 125mm | 69 | 12.5 |
| 140mm | 76 | 12.5 |
| 160mm | 86 | 12.5 |
| 200mm | 106 | 12.5 |
| 225mm | 119 | 12.5 |
| 250mm | 131 | 12.5 |
| 280mm | 141 | 12.5 |
| 315mm | 164 | 12.5 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
