U-PVC 22.5° Bend - Made of Tube
In stock
Only %1 left
SKU
022.751.090K
| Enable Hide Price | No |
|---|
Description

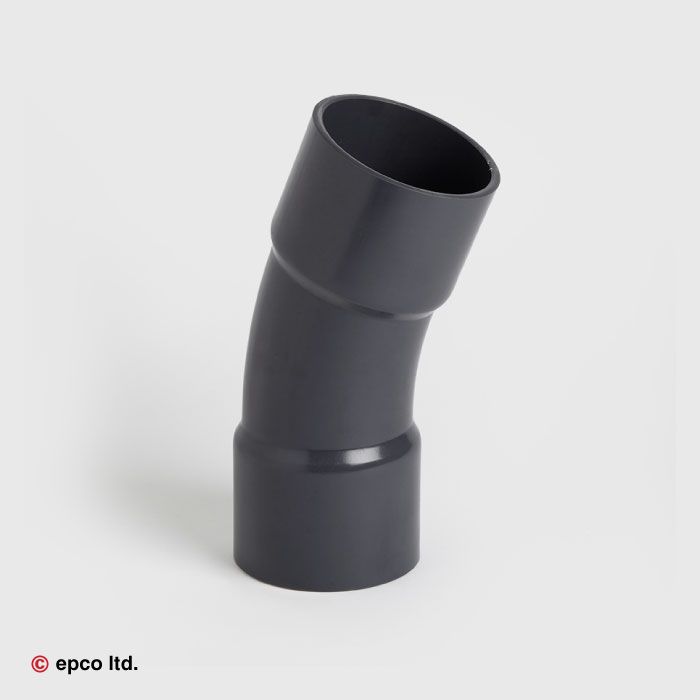

U-PVC 22.5 degree Bend is made from tube are used to connect two pieces of pipe of the same diameter at an angle of 22.5 degrees with a gradual curve for a smooth flow and a pressure rating of 10 - 12.5 bar.
| d | L | Z | PN |
|---|---|---|---|
| 90mm | 58 | 48 | 10 |
| 110mm | 70 | 64 | 12.5 |
| 125mm | 79 | 75 | 12.5 |
| 140mm | 87 | 81 | 12.5 |
| 160mm | 99 | 92 | 12.5 |
| 200mm | 122 | 127 | 12.5 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
