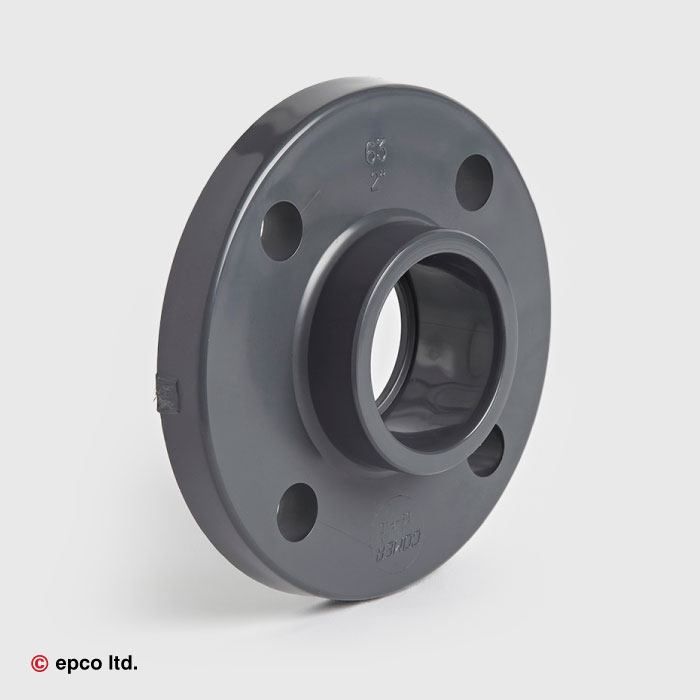

U-PVC Plain Full Face Flange - ASA 150
In stock
Only %1 left
SKU
022.141.025X
| Enable Hide Price | No |
|---|
Description
U-PVC ASA 150 Full Face Flange is used to create a seal at the end of a length of U-PVC pipe of the same diameter, with the use of a stub or full face flange with two backing rings, a stub gasket and fastener set.
| d | L | Z | E | S | I | F | Holes | Dia |
|---|---|---|---|---|---|---|---|---|
| 25 | 20 | 4.5 | 100 | 18 | 70 | 16 | 4 | M12 |
| 32 | 29 | 4.5 | 115 | 17 | 79 | 16 | 4 | M12 |
| 40 | 32 | 4.5 | 119 | 19 | 89 | 16 | 4 | M12 |
| 50 | 36 | 4.5 | 129 | 24 | 98 | 16 | 4 | M12 |
| 63 | 42 | 4.5 | 165 | 20 | 121 | 19 | 4 | M16 |
| 75 | 47 | 4.5 | 189 | 23 | 140 | 19 | 4 | M16 |
| 90 | 52 | 6 | 193 | 27 | 152 | 19 | 4 | M16 |
| 110 | 64 | 7 | 233 | 27 | 190 | 19 | 8 | M16 |
| 160 | 86 | 8 | 287 | 30 | 241 | 22 | 8 | M20 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
