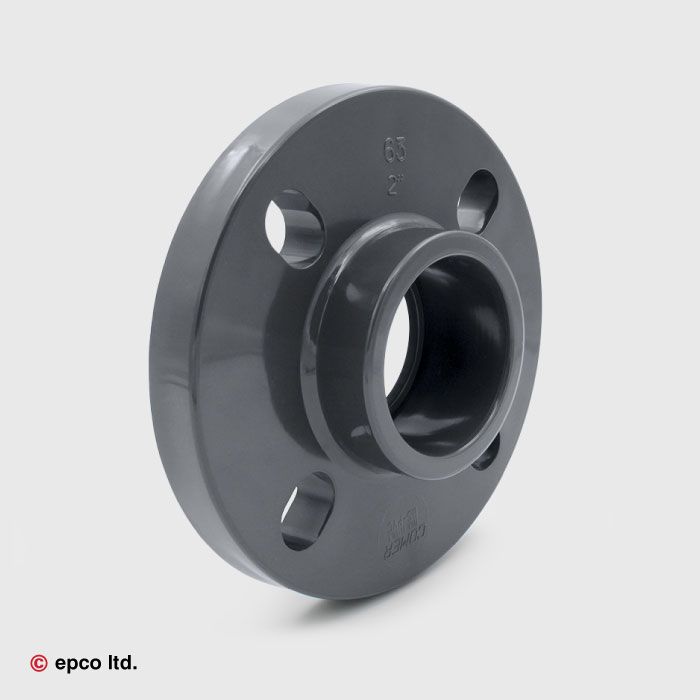

U-PVC Plain Full Face Flange - Universal
In stock
Only %1 left
SKU
022.141.063-UNIV
| Enable Hide Price | No |
|---|
Description
U-PVC Universal Full Face Flange is used to create a secure joint between two lengths of U-PVC pipe with the use of two backing rings, a stub gasket and fastener set.
| d | L | Z | I | S | E | Holes | Bolt Dia |
|---|---|---|---|---|---|---|---|
| 63mm | 38 | 4.5 | 125 | 18 | 165 | 4 | M16 |
| 75mm | 44 | 6 | 145 | 19 | 185 | 4 | M16 |
| 90mm | 51 | 7 | 160 | 20 | 200 | 8 | M16 |
| 110mm | 61 | 8 | 180 | 22 | 220 | 8 | M16 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
