ABS Flowmeter Standard Pattern

In stock

Only %1 left

SKU

011.1161.03A

Information
Enable Hide Price	No

Description

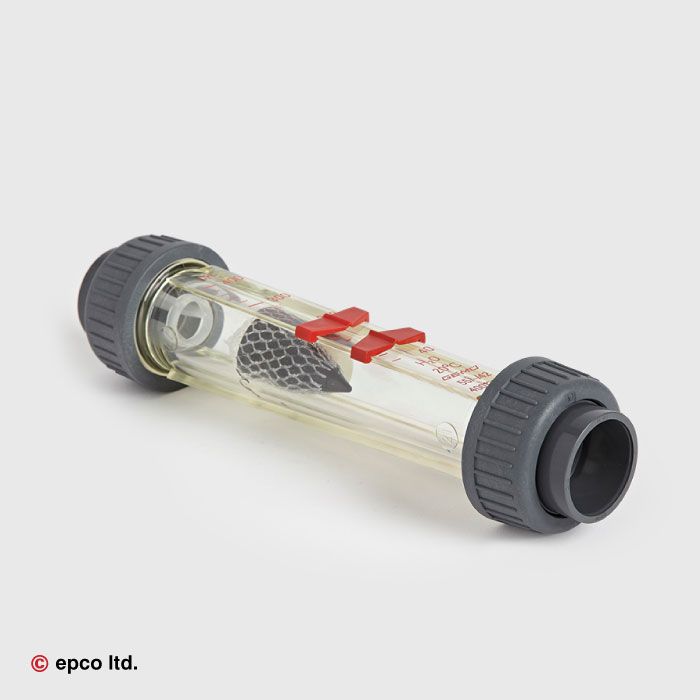

Standard Pattern Variable Area Flowmeter is used to measure the flow of a pipe system and uses a Trogamid tube and stainless steel float.

SIZE	SCALE	G	D	L1	L2	L3	L4
3/4”	20-250 L/HR	1 1/4”	53	350	356	375	394
3/4”	40-400 L/HR	1 1/4”	53	350	356	375	394
3/4”	60-640 L/HR	1 1/4”	53	350	356	375	394
3/4”	75-1000 L/HR	1 1/4”	53	350	356	375	394
1”	40-400 L/HR	1 1/2”	60	350	356	376	400
1”	60-640 L/HR	1 1/2”	60	350	356	376	400
1”	100-1000 L/HR	1 1/2”	60	350	356	376	400
1”	150-1600 L/HR	1 1/2”	60	350	356	376	400
1 1/4”	150-1600 L/HR	2”	74	350	356	380	408
1 1/4”	200-2500 L/HR	2”	74	350	356	380	408
1 1/4”	400-4000 L/HR	2”	74	350	356	380	408
1 1/2”	200-2500 L/HR	2 1/4”	83	350	356	382	418
1 1/2”	400-4000 L/HR	2 1/4”	83	350	356	382	418
1 1/2”	500-5000 L/HR	2 1/4”	83	350	356	382	418
2”	0.4-4.0 M/HR	2 3/4”	103	350	356	386	433
2”	0.6-6.4 M/HR	2 3/4”	103	350	356	386	433
2”	1.0-10.0 M/HR	2 3/4”	103	350	356	386	433
2 1/2”	1.5-14.0 M/HR	3 1/2”	122	350	356	388	445
2 1/2”	2.0-20.0 M/HR	3 1/2”	122	350	356	388	445

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
