Advantages of C-PVC Pipe Systems
CPVC Fittings are renowned for their properties including:
- High Temperature Resistance
- Corrosion & Chemical Resistance
- Durability & Longevity
- Easy Installation
- Cost-Effective & Low Maintenance
C-PVC Pipe Systems resistance
CPVC Pipe Fittings are resistant to the following:
- Most acid and aggressive agents
- Bases & Alkalis
- Salts & Saline solutions
- Easy Installation
- Alcohols & some hydrocarbons
Common Applications
Due to its robust qualities, CPVC pipework is commonly used in:
- Chemical processing plants
- Industrial and wastewater treatment
- Desalination plants and chemical storage plants
- Refrigeration systems
- Fuel and industrial solvent transport systems
| C-PVC Technical Specifications | |
|---|---|
| Size Range | 20mm (min) - 225mm (max) |
| Nominal Pressure | PN16 with water at 20°C |
| Temperature Range | 0°C to +90°C |
| Coupling Standard | Solvent Weld | EN ISO 15493 |
| Coupling Standard | Flanging System | ISO 7005, EN ISO 15493 |
| Manufacturing Standards | Pipe | DIN 8079/80 |
| Manufacturing Standards | Fittings | DIN 8063 |
| Reference Standards | Construction criteria | EN ISO 15493 |
| Reference Standards | Test methods and requirements | EN ISO 15493 |
| Fitting Material | C-PVC |
| Seal Material | EPDM, FPM |

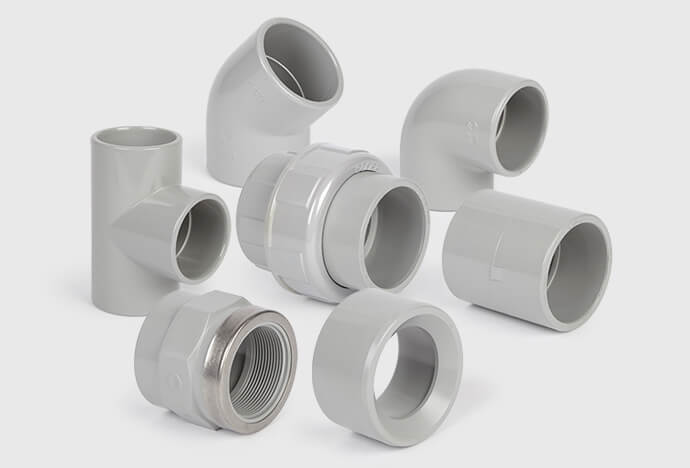

Browse Our C-PVC Pipe Fittings Range
epco stocks a range of metric C-PVC pressure pipe fittings, available for industrial pressure pipe systems across chemical processing, water treatment, desalination pleants, refrigeration and fuel and industrial transport systems applications.
Socket
Union
90°C Elbow
45°C Elbow
Tee
Reducing Bush
Cap
Adaptor
How to Glue C-PVC Pressure Pipe and Fittings
C-PVC Pipe and Fittings can be cemented together provided the sizes and tolerances are in accordance with the standardisation and tolerances given. C-PVC glue softens the inside of the fitting and the outside of the pipe to form a joint chemically. Strength of the joint is reduced if surfaces are not cleaned and/or properly prepared. We've prepared an in-depth article on how to glue pipe and fittings including precautions and relevant products you'll need.
C-PVC Application Consumption
For the production of one bonded joint the following approximate amounts of adhesive is required:
| 32 | 40 | 50 | 63 | 75 | 90 | 110 | 125 | 160 | 225 | 250 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Griffon HT-120 | 650 | 290 | 160 | 100 | 90 | 70 | 40 | 30 | 20 | 12 | 8 |
Indication of the number of joints per 1L
C-PVC Cement Cure Times
Dry/Cure Time: approx. See table (temperature medium 20°C).
| ø | 16 - 63mm | 75 - 110mm | 125 - 250mm | 16 - 160mm | 200 - 150mm | |||
|---|---|---|---|---|---|---|---|---|
| °C | 10 BAR | 16 BAR | 10 BAR | 16 BAR | 10 BAR | 16 BAR | NON PRESSURE | |
| 5°C - 10°C | 4 hour | 8 hour | 8 hour | 16 hour | 16 hour | 32 hour | 2 hour | 4 hour |
| < 10°C | 2 hour | 4 hour | 4 hour | 8 hour | 8 hour | 16 hour | 1 hour | 2 hour |
Curing time may vary depending on a.o. surface, product quantity used, humidity levels and ambient temp.
Download the epco Catalogue
Browse our Pressure Pipeline range, featuring over 3,000 products including Pipe, Fittings, Valves and more spanning U-PVC, ABS, C-PVC, Polyethylene and Polypropylene across their respective Metric or Imperial standards.
Frequently Asked Questions
C-PVC can withstand temperatures of between +60°C and +90°C.
C-PVC is UV resistant and can be exposed to direct sunlight. To improve resistance, C-PVC pipe can be covered by a special water based latex paint.
C-PVC pipe and fittings are not suitable for drinking (potable) water, carrying no WRAS approvals. You can check a fittings specs on our website to see if a product is WRAS approved.
No, C-PVC (Chlorinated Polyvinyl Chloride) is not considered as a food safe material. Check our other materials for better solutions.
ABS is best used below ground however it can also be used above ground if indoors (no direct sunlight) or if made to be UV resistant.
C-PVC pipe and fittings can be used both below and above ground.
