Union

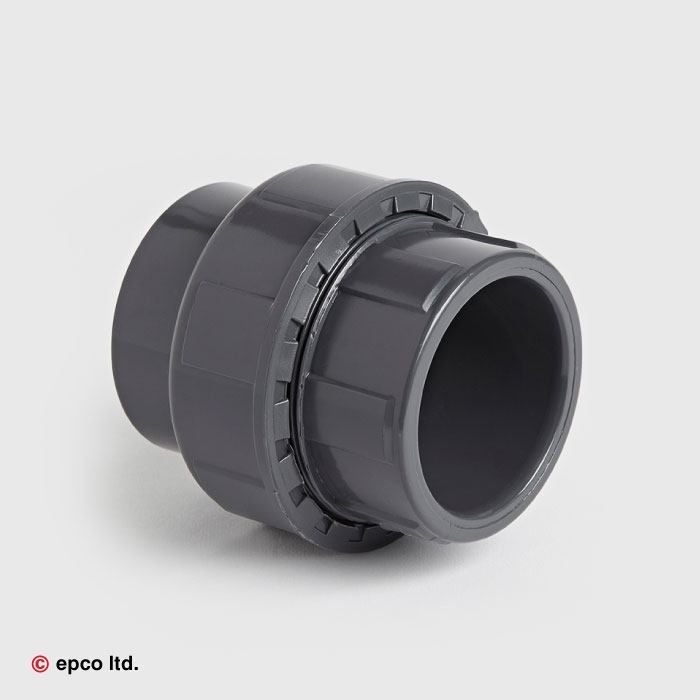

U-PVC Plain Inch x Plain Metric Union

In stock
Only %1 left
SKU
UPVC-UNION-IM
Submit Enquiry
Information
Description
U-PVC plain inch x plain metric union is used to connect a metric pipe end to an opposing imperial pipe end allowing both pieces of pipe to be separated for future maintenance.
d x d1 L Z1 Z2 G1 E
3/8” x 16 14 3 10 3/4” 34
1/2” x 20 16 3 10 1” 42
3/4” x 25 19 3 10 1 1/4” 52
1” x 32 22 3 10 1 1/2” 59
1 1/4” x 40 26 3 12 2” 72
1 1/2” x 50 31 3 14 2 1/4” 79
2” x 63* 38 3 18 2 3/4” 96
3” x 90* 51 5 18 4” 134
4” x 110* 61 5 18 5” 163

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
