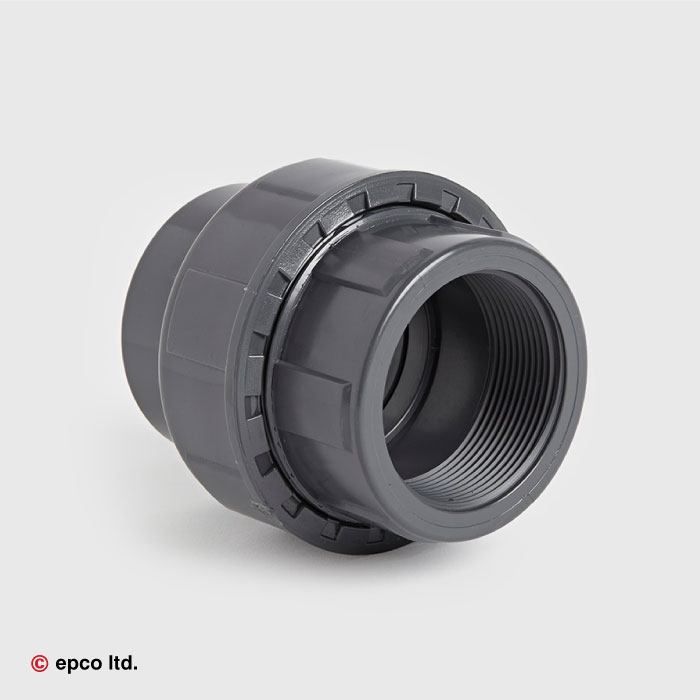

U-PVC Plain x Threaded Union
In stock
Only %1 left
SKU
021.022.02
| Enable Hide Price | No |
|---|
Description
U-PVC plain x threaded union is used to connect two threaded pipe fittings of the same diameter, with a mechanism which allows them to be separated if necessary.
| d x G | L | L1 | Z1 | Z2 | G1 | E |
|---|---|---|---|---|---|---|
| 1/2” | 16 | 15 | 3 | 11 | 1” | 42 |
| 3/4” | 19 | 16.3 | 3 | 12.7 | 1 1/4” | 52 |
| 1” | 22 | 19.1 | 3 | 12.9 | 1 1/2” | 59 |
| 1 1/4” | 26 | 21.4 | 3 | 16.6 | 2” | 72 |
| 1 1/2” | 31 | 21.4 | 3 | 23.6 | 2 1/4” | 79 |
| 2” | 38 | 25.7 | 3 | 30.3 | 2 3/4” | 96 |
| 2 1/2”* | 44 | 30.2 | 3 | 31.8 | 3 1/2” | 119 |
| 3”* | 51 | 33.3 | 5 | 35.7 | 4” | 134 |
| 4”* | 61 | 39.3 | 5 | 39.7 | 5” | 163 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
| d x G | L | L1 | Z1 | Z2 | G1 | E |
|---|---|---|---|---|---|---|
| 10mm x 1/4” | 12 | 12 | 5/8” | |||
| 12mm x 1/4” | 12 | 12 | 5/8” | |||
| 16mm x 3/8” | 14 | 11.4 | 3 | 12.6 | 3/4” | 34 |
| 20mm x 1/2” | 16 | 15 | 3 | 11 | 1” | 42 |
| 25mm x 3/4” | 19 | 16.3 | 3 | 12.7 | 1 1/4” | 52 |
| 32mm x 1” | 22 | 19.1 | 3 | 12.9 | 1 1/2” | 59 |
| 40mm x 1 1/4” | 26 | 21.4 | 3 | 16.6 | 2” | 72 |
| 50mm x 1 1/2” | 31 | 21.4 | 3 | 23.6 | 2 1/4” | 79 |
| 63mm x 2” | 38 | 25.7 | 3 | 30.3 | 2 3/4” | 96 |
| 75mm x 2 1/2”* | 44 | 30.2 | 3 | 31.8 | 3 1/2” | 119 |
| 90mm x 3”* | 51 | 33.3 | 5 | 35.7 | 4” | 134 |
| 110mm x 4”* | 61 | 39.3 | 5 | 39.7 | 5” | 163 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
