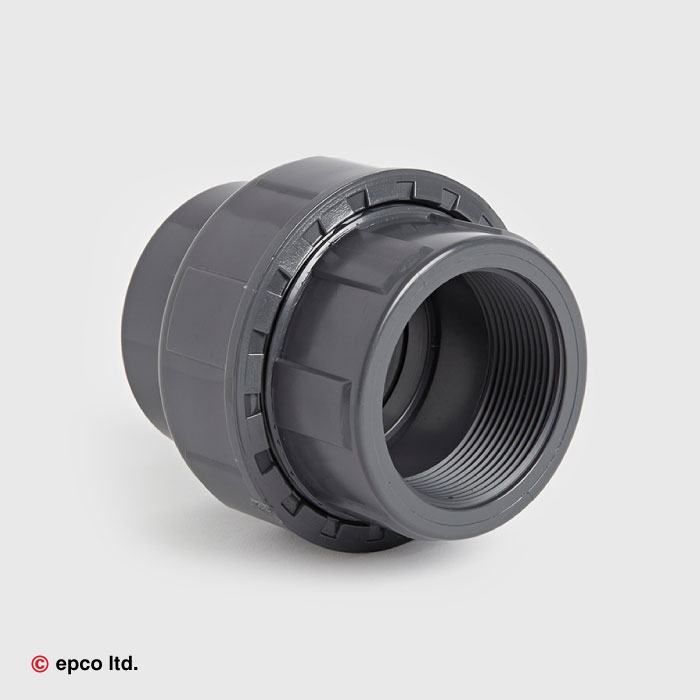

U-PVC Threaded Union
In stock
Only %1 left
SKU
021.023.01
| Enable Hide Price | No |
|---|
Description
U-PVC threaded union is used to connect two threaded pipe fittings of the same diameter, with a mechanism which allows them to be separated if necessary.
| G | L | Z1 | Z2 | G1 | E |
|---|---|---|---|---|---|
| 3/8” | 11.4 | 5.6 | 12.6 | 3/4” | 67 |
| 1/2” | 15 | 4 | 11 | 1” | 42 |
| 3/4” | 16.3 | 5.7 | 12.7 | 1 1/4” | 52 |
| 1” | 19.1 | 5.9 | 12.9 | 1 1/2” | 59 |
| 1 1/4” | 21.4 | 7.6 | 16.6 | 2” | 72 |
| 1 1/2” | 21.4 | 12.6 | 23.6 | 2 1/4” | 79 |
| 2” | 25.7 | 15.3 | 30.3 | 2 3/4” | 96 |
| 2 1/2” | 30.2 | 16.8 | 31.8 | 3 1/2” | 119 |
| 3” | 33.3 | 22.7 | 35.7 | 4” | 134 |
| 4” | 39.3 | 26.7 | 39.7 | 5” | 163 |
The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
